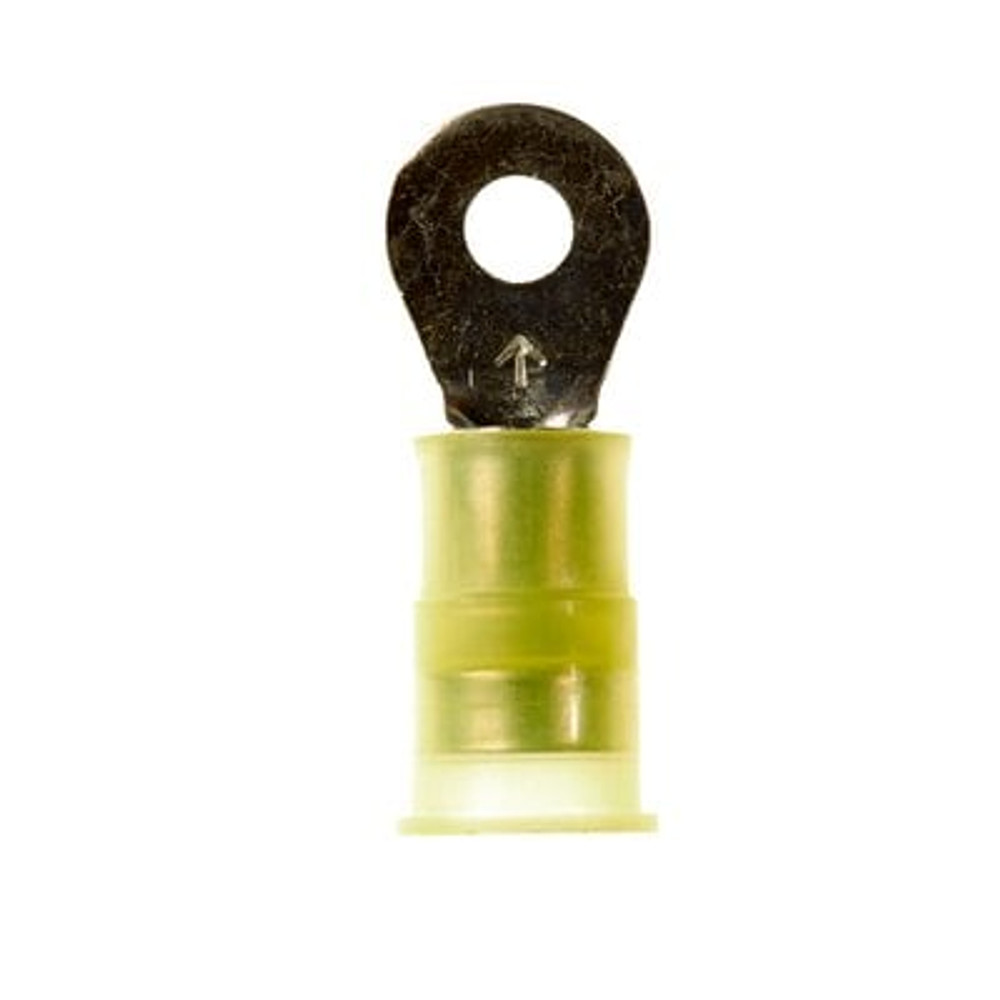

3M™ Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-6RX, standard-style ring tongue fits around the stud, 500/Case - 7000133295

Sold As: 500-Pack
SKU: 7000133295
MPN: 7000133295
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128586846
3M ID: 80611458292
5 Digit UPC: 58684
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26
Overall Width (Metric)9.65
Operating Temperature Range (Celsius)-40 °C to 105 °C
Barrel StyleButted
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Width (Imperial)0.38
Insulation MaterialNylon
Terminal StyleStandard
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating UOMV
Maximum Voltage Rating600 to 1000 V
Overall Length (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Connection Width (Metric)3.5
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)26.16
Ring TypeStandard
Product ColorYellow
UL File NumberE23438
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Terminal TypeRing
Connection Width (Imperial)0.138
Overall Length (Imperial)1.03
Minimum Conductor Size (Metric)3.31 mm²
MaterialPlastic
Connection Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Minimum Conductor Size (Imperial)12 AWG
