3M Products & Supplies

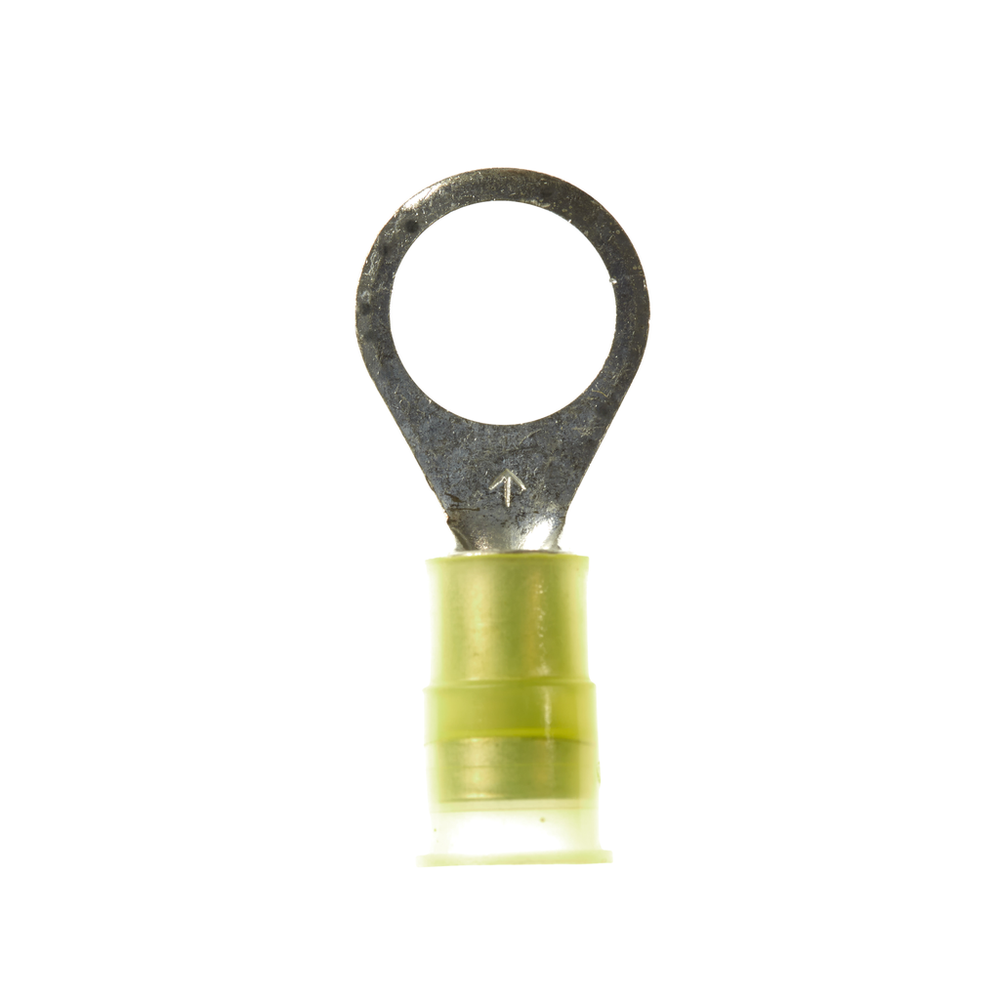

3M™ Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-38R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133423

Sold As: 50-Pack
SKU: 7000133423
MPN: 7000133423
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589854
3M ID: 80611466311
5 Digit UPC: 58985
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Specifications

Country of OriginUnited States
Maximum Voltage Rating600 to 1000 V
Connection Width (Imperial) UOMin
Maximum Conductor Size (Metric)5.26
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Connection Width (Metric) UOMmm
Overall Length (Imperial)1.26
Overall Width (Metric)13.71
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric)9.525
Maximum Recommended Voltage Rating600.0
Operating Temperature Range (Celsius)-40 °C to 105 °C
Terminal TypeRing
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
UL File NumberE23438
Connection Width (Imperial)0.375
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)3.31 mm²
Barrel StyleButted
Insulation MaterialNylon
Maximum Operating Temperature (Fahrenheit)221.0
Ring TypeStandard
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Product ColorYellow
Overall Length (Imperial) UOMin
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
MaterialPlastic
Overall Length (Metric)32.0
Overall Width (Imperial)0.54
