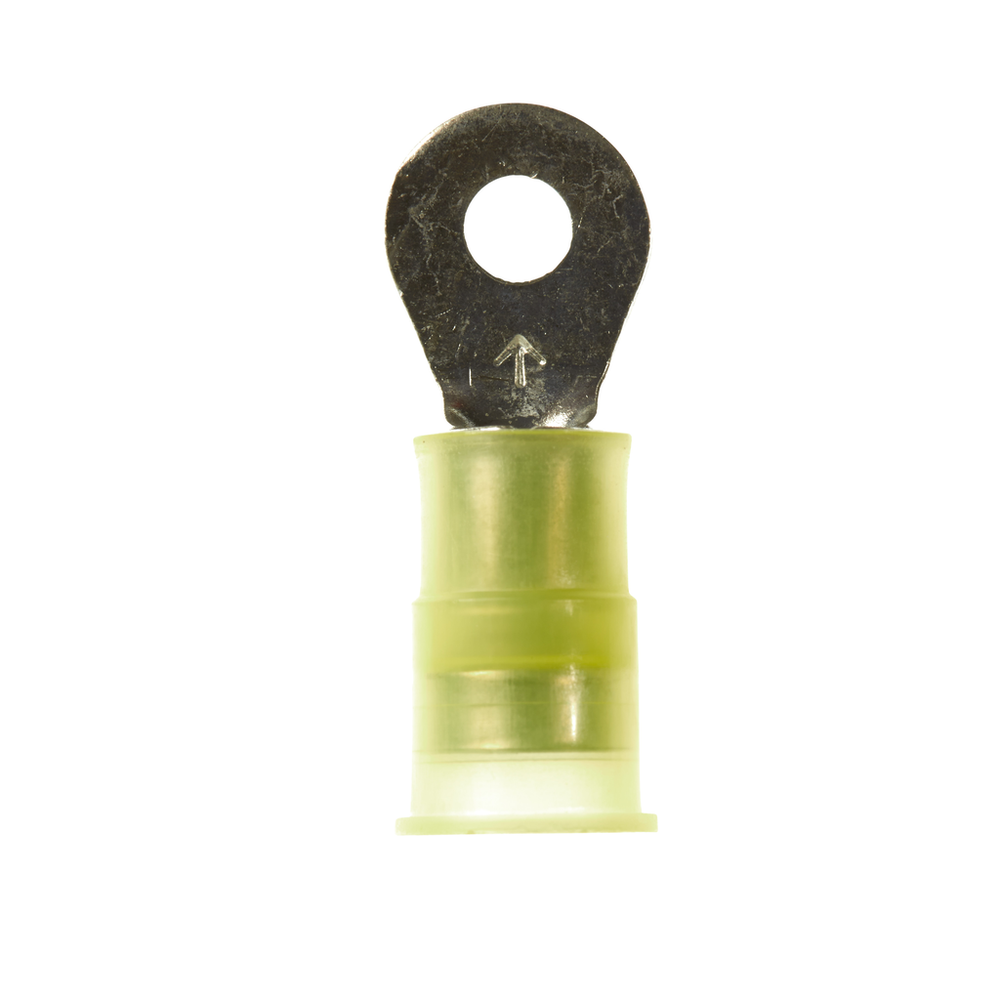

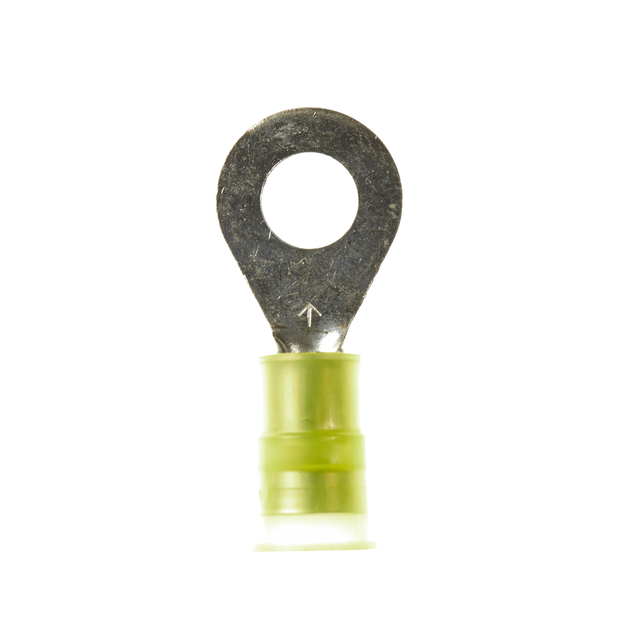

3M™ Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-8RX, standard-style ring tongue fits around the stud, 500/Case - 7000133296

Sold As: 50-Pack
SKU: 7000133296
MPN: 7000133296
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586853
3M ID: 80611458300
5 Digit UPC: 58685
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Insulation MaterialNylon
Maximum Conductor Size (Imperial)10 AWG
Terminal StyleStandard
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Metric)9.65
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Maximum Recommended Voltage Rating600.0
Overall Length (Imperial)1.03
Ring TypeStandard
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Voltage Rating600 to 1000 V
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Barrel StyleButted
Overall Width (Imperial)0.38
Product ColorYellow
MaterialPlastic
Connection Width (Imperial)0.164
Operating Temperature Range (Celsius)-40 °C to 105 °C
Terminal TypeRing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Metric)5.26
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric) UOMmm
Connection Width (Metric)4.166
Overall Length (Metric)26.16
UL File NumberE23438
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
