3M Products & Supplies

3M™ Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-10RX, standard-style ring tongue fits around the stud, 500/Case - 7000133297

Sold As: 500-Pack
SKU: 7000133297
MPN: 7000133297
For an accurate lead time please contact us
UPC: 00051128586860
3M ID: 80611458318
5 Digit UPC: 58686
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

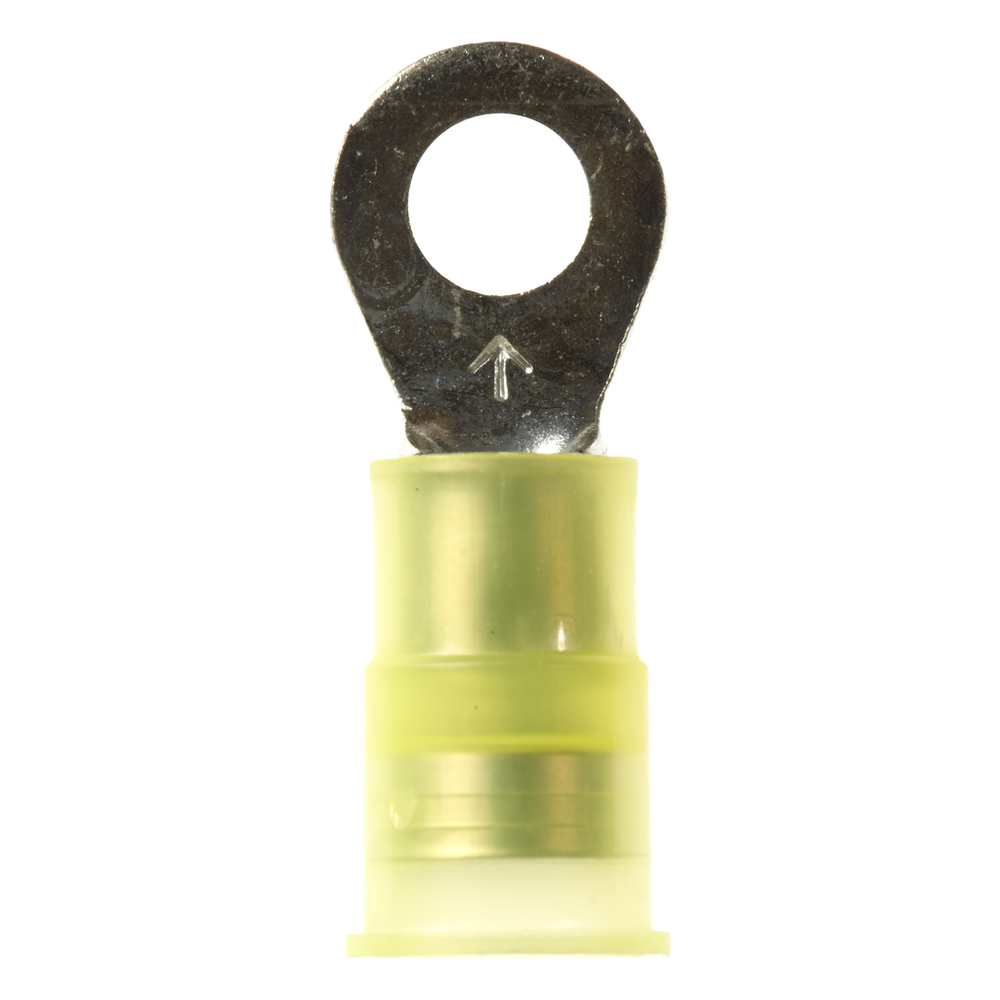

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

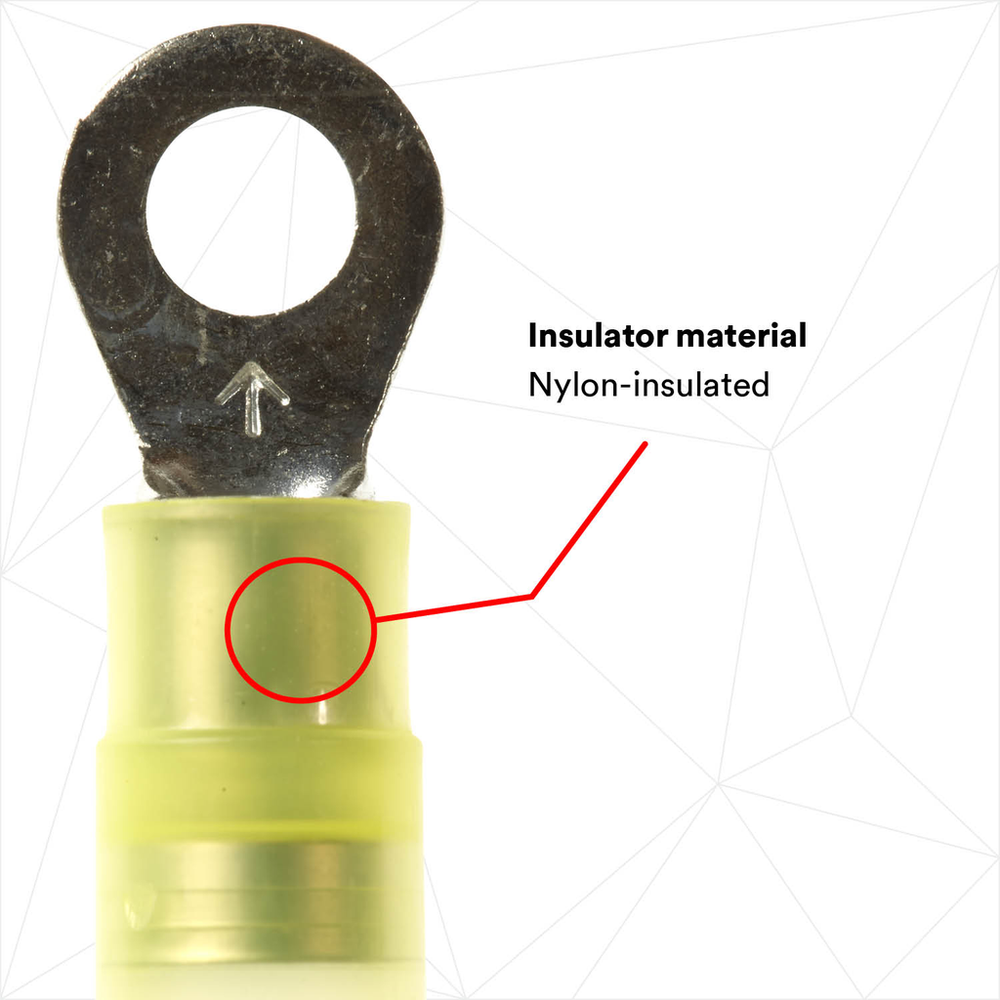

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Specifications

Country of OriginUnited States
MaterialPlastic
Connection Width (Metric)4.826
Terminal StyleStandard
Connection Width (Metric) UOMmm
Product ColorYellow
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26
Ring TypeStandard
Overall Length (Imperial)1.03
Terminal TypeRing
Minimum Stud Diameter (Metric)5.0
Overall Width (Metric) UOMmm
Minimum Stud Diameter (Metric) UOMmm
Barrel StyleButted
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.38
Overall Length (Imperial) UOMin
Insulation MaterialNylon
Overall Width (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Connection Width (Imperial)0.19
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Metric)26.16
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating600.0
Maximum Operating Temperature (Celsius)105.0
UL File NumberE23438
Minimum Conductor Size (Imperial)12 AWG
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Stud Sizes#10
