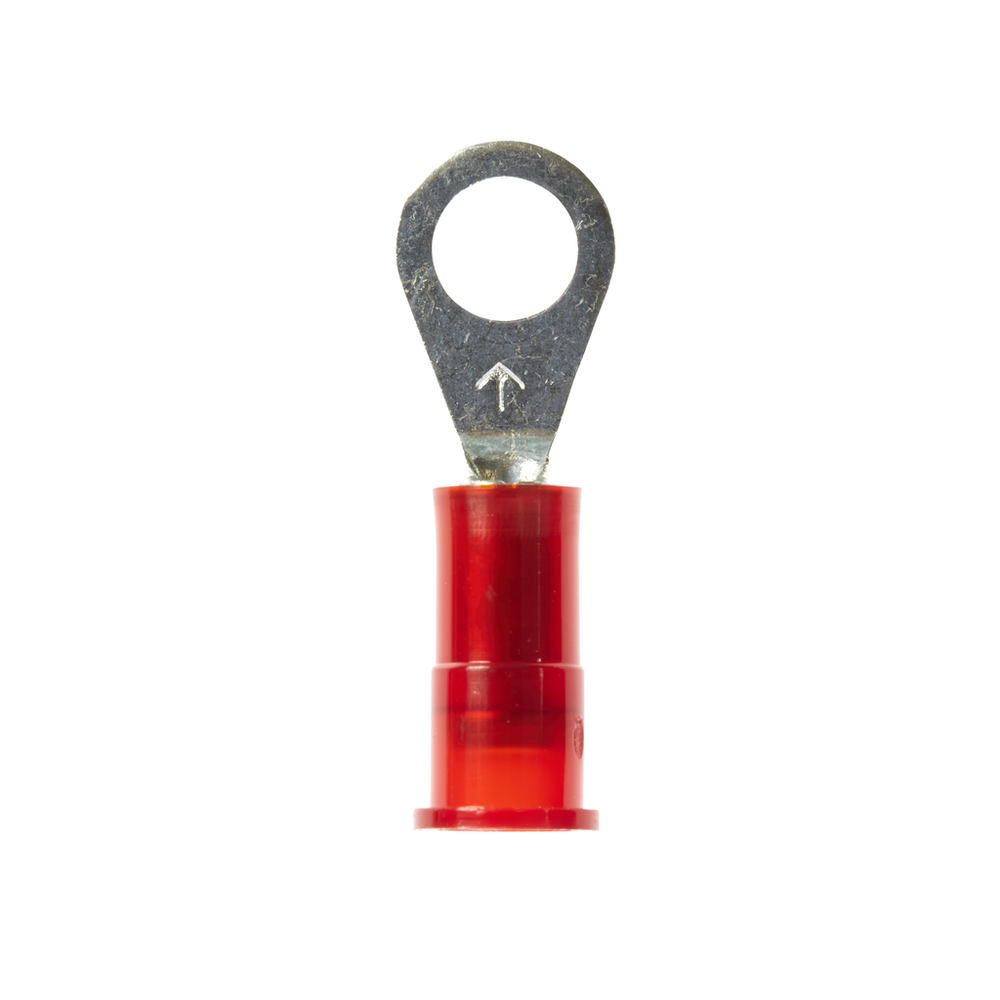

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-4R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133406

Sold As: 500-Pack
SKU: 7000133406
MPN: 7000133406
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589434
3M ID: 80611465891
5 Digit UPC: 58943
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud

Specifications

Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Length (Imperial)0.79
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Terminal StyleStandard
Connection Width (Imperial)0.112
Barrel StyleButted
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial) UOMin
Overall Length (Metric)20.06
Terminal TypeRing
Maximum Recommended Voltage Rating600.0
Overall Width (Metric)6.35
Maximum Conductor Size (Metric)0.823
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Metric)2.845
Overall Length (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Insulation MaterialNylon
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.25
Ring TypeStandard
Product ColorRed
Maximum Voltage Rating600 to 1000 V
Minimum Conductor Size (Metric)0.326 mm²
MaterialPlastic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial) UOMin
