3M Products & Supplies

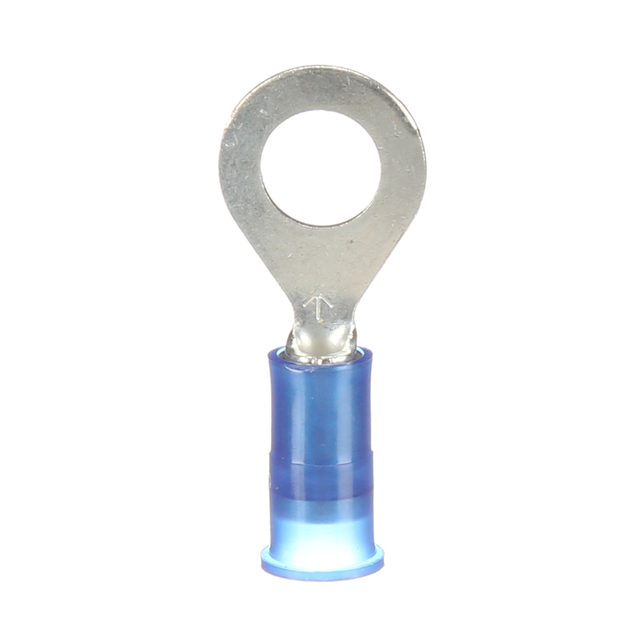

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-38RX, standard-style ring tongue fits around the stud, 500/Case - 7000133418

Sold As: 500-Pack
SKU: 7000133418
MPN: 7000133418
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589687
3M ID: 80611466147
5 Digit UPC: 58968
$749.16 ($1.50 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Barrel StyleButted
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric)14.22
UL File NumberE23438
Maximum Conductor Size (Metric)2.08
Overall Length (Imperial)1.14
Terminal StyleStandard
Overall Width (Imperial)0.56
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)28.95
Connection Width (Imperial)0.375
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating600.0
Terminal TypeRing
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMmm
Product ColorBlue
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric)9.525
MaterialPlastic
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Insulation MaterialNylon
Connection Width (Metric) UOMmm
Ring TypeStandard
Connection Width (Imperial) UOMin
