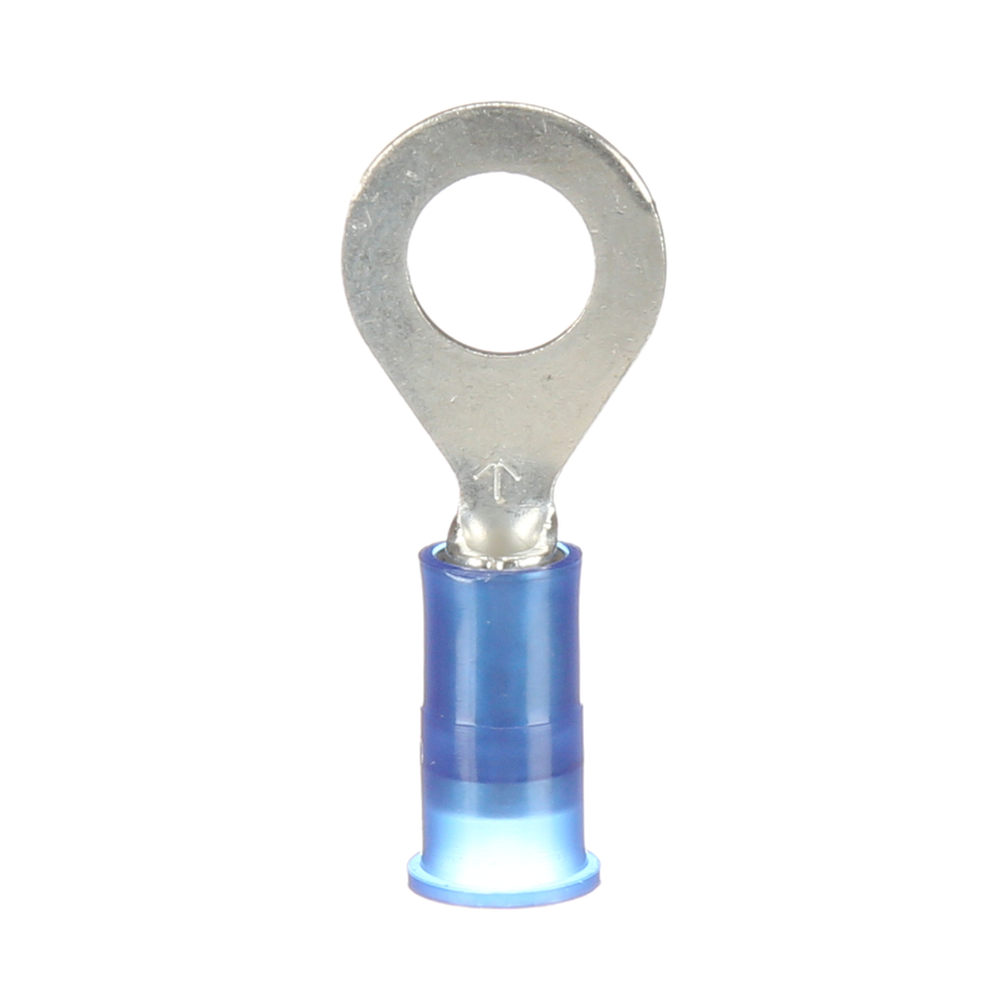

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-8RX, standard-style ring tongue fits around the stud, 500/Case - 7000133415

Sold As: 100-Pack
SKU: 7000133415
MPN: 7000133415
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589649
3M ID: 80611466105
5 Digit UPC: 58964
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.08
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial)0.91
Connection Width (Metric)4.166
Overall Width (Imperial)0.33
Product ColorBlue
Terminal TypeRing
Terminal StyleStandard
Overall Length (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
UL File NumberE23438
Insulation MaterialNylon
Minimum Conductor Size (Metric)1.31 mm²
MaterialPlastic
Maximum Voltage Rating600 to 1000 V
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial)0.164
Connection Width (Imperial) UOMin
Overall Length (Metric)23.11
Overall Width (Metric) UOMmm
Barrel StyleButted
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Celsius)-40 °C to 105 °C
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Metric)8.38
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Ring TypeStandard
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
