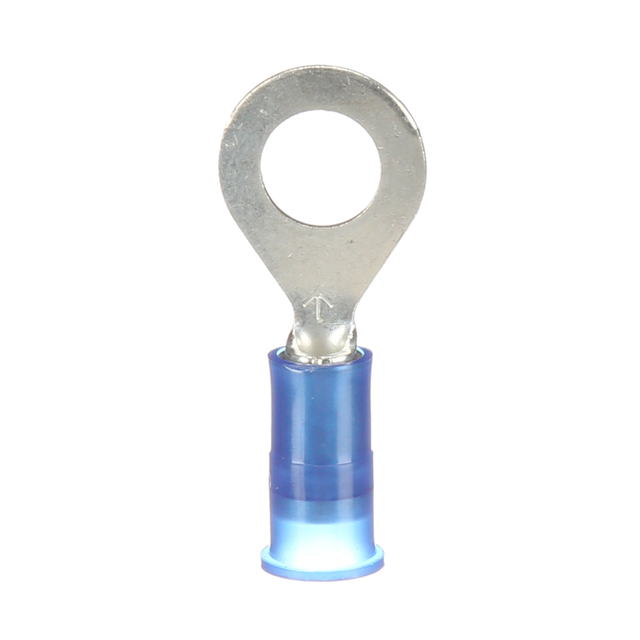

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-10R/LX, standard-style ring tongue fits around the stud, 500/Case - 7000133282

Sold As: 100-Pack
SKU: 7000133282
MPN: 7000133282
For an accurate lead time please contact us
UPC: 00051128586624
3M ID: 80611458078
5 Digit UPC: 58662
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Terminal TypeRing
Minimum Stud Diameter (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Conductor Size (Metric)2.08
MaterialPlastic
Overall Width (Metric)7.87
Minimum Conductor Size (Metric)1.31 mm²
Dimension E0.79 Inch
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Barrel StyleButted
Maximum Recommended Voltage Rating UOMV
Ring TypeStandard
Maximum Voltage Rating600 to 1000 V
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial)0.17
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Metric)23.87
Minimum Stud Diameter (Metric)5.0
Terminal StyleStandard
Overall Length (Imperial)0.94
Insulation MaterialNylon
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.31
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Clearance (C)0.33 Inch
Barrel Inside Diameter0.090 Inch
Maximum Operating Temperature (Celsius)105.0
UL File NumberE23438
Maximum Recommended Voltage Rating600.0
Insulation ColorBlue
Product ColorBlue
Operating Temperature Range (Celsius)-40 °C to 105 °C
Units per Case500.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Size#10
Maximum Conductor Size (Imperial)14 AWG
Packaging100 per bottle
Maximum Insulation Outside Diameter0.145 in
