3M Products & Supplies

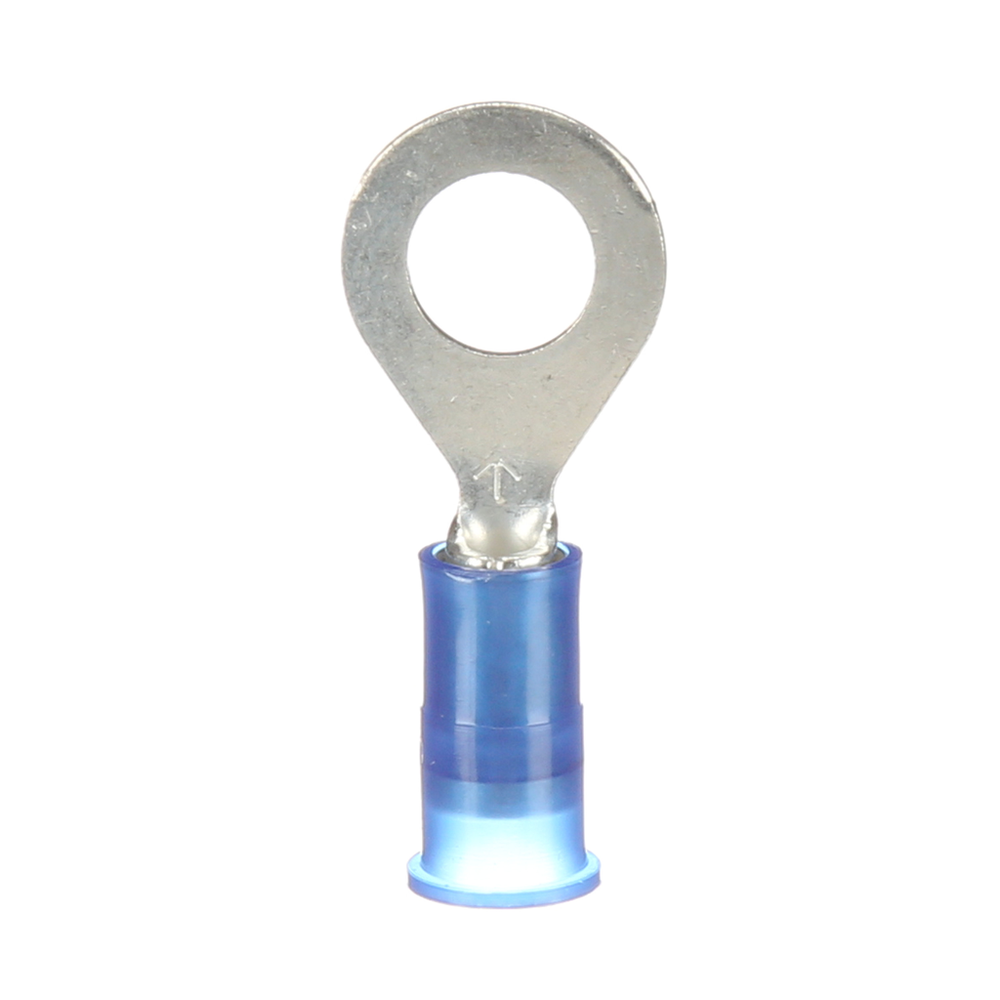

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-8R/LX, standard-style ring tongue fits around the stud, 500/Case - 7000133304

Sold As: 500-Pack
SKU: 7000133304
MPN: 7000133304
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587041
3M ID: 80611458490
5 Digit UPC: 58704
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Barrel StyleButted
Connection Width (Imperial) UOMin
Maximum Voltage Rating600 to 1000 V
Maximum Operating Temperature (Celsius)105.0
Overall Length (Metric)23.87
Terminal StyleStandard
Maximum Operating Temperature (Fahrenheit) UOMDegree
Ring TypeStandard
Terminal TypeRing
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Metric) UOMmm
Product ColorBlue
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.164
Maximum Recommended Voltage Rating600.0
Overall Width (Metric)7.87
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08
Connection Width (Metric)4.166
MaterialPlastic
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Insulation MaterialNylon
Overall Width (Imperial)0.31
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)0.94
Connection Width (Metric) UOMmm
Operating Temperature Range (Celsius)-40 °C to 105 °C
