3M Products & Supplies

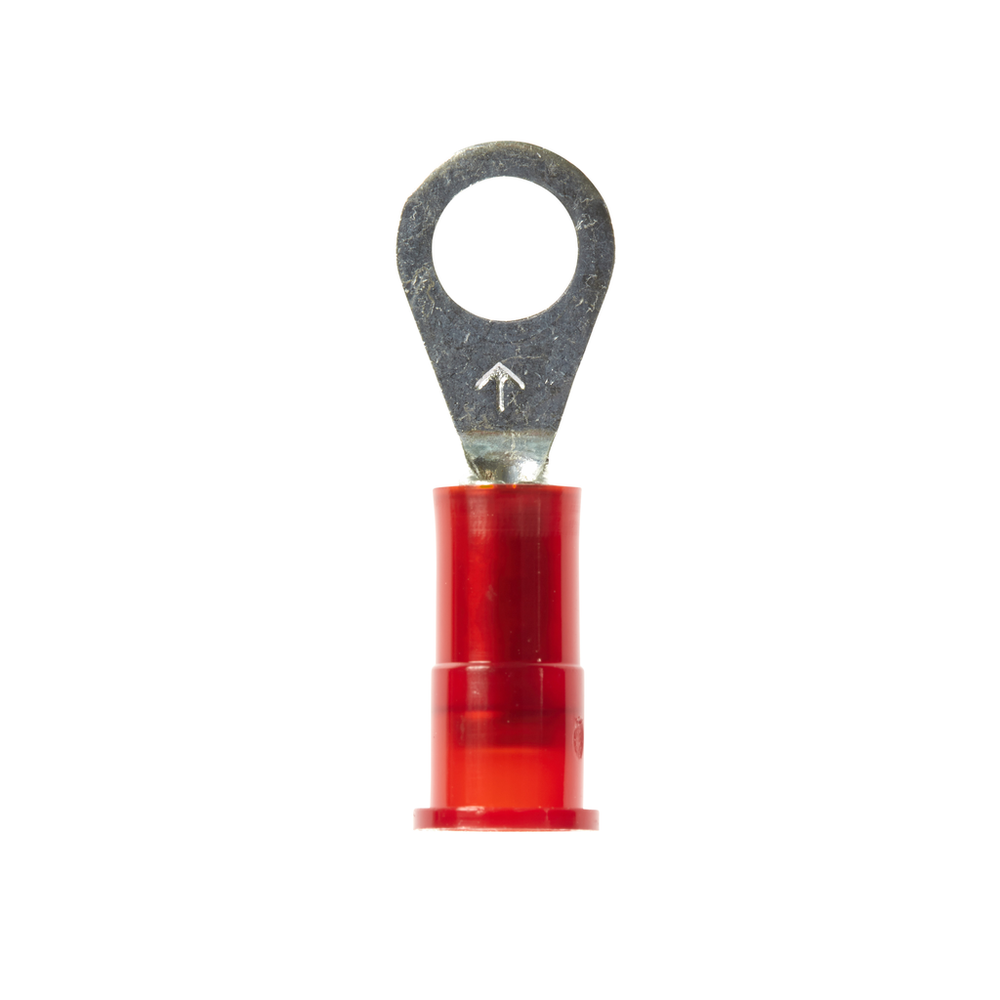

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-10R/LX, standard-style ring tongue fits around the stud, 500/Case - 7000133272

Sold As: 100-Pack
SKU: 7000133272
MPN: 7000133272
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586433
3M ID: 80611457880
5 Digit UPC: 58643
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Specifications

Country of OriginUnited States
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Overall Width (Imperial)0.31
Connection Width (Metric)4.826
Maximum Recommended Voltage Rating600.0
Product ColorRed
Barrel StyleButted
Connection Width (Metric) UOMmm
Overall Length (Metric)23.36
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Imperial)0.92
Ring TypeStandard
Insulation MaterialNylon
Maximum Voltage Rating600 to 1000 V
Terminal TypeRing
Overall Length (Imperial) UOMin
Overall Width (Metric)7.87
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Width (Metric) UOMmm
MaterialPlastic
Terminal StyleStandard
UL File NumberE23438
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Metric)0.823
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial)0.19
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit)221.0
