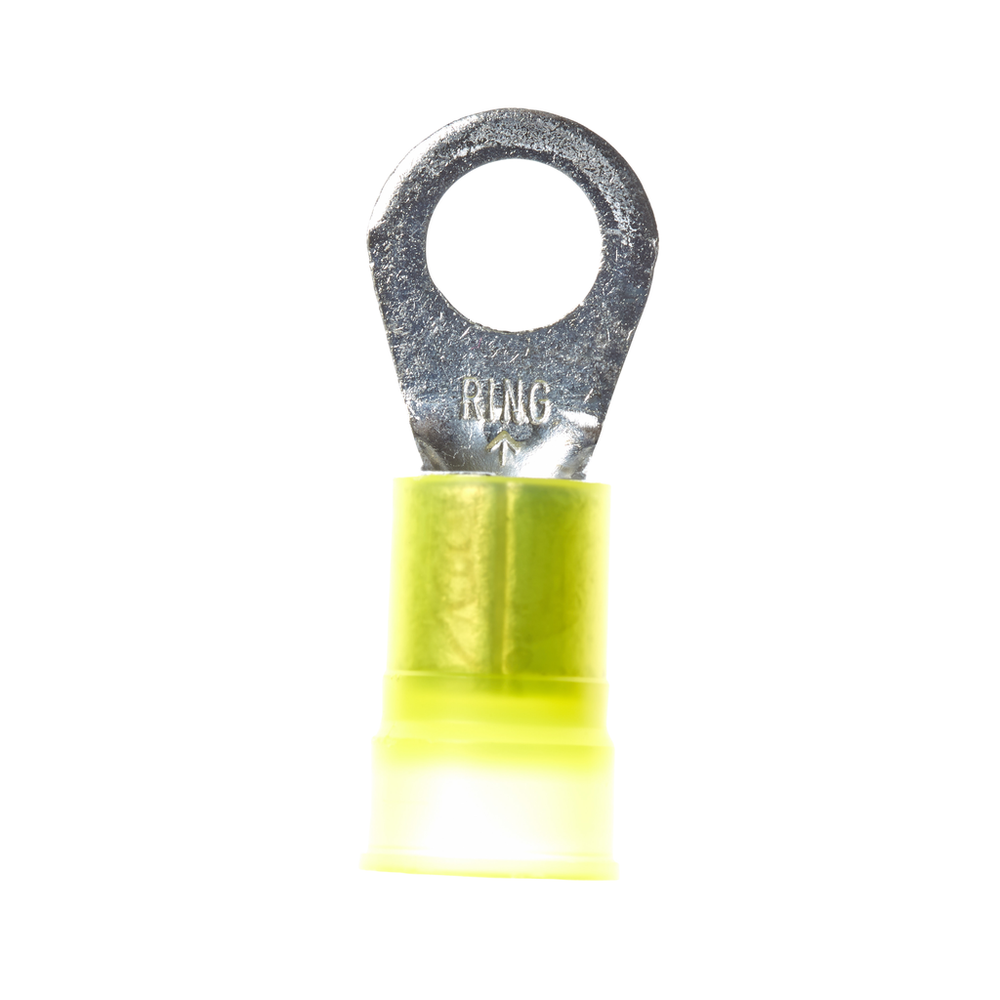

3M™ Scotchlok™ Ring Nylon Insulated, 10/bottle, MN4-38RX, standard-style ring tongue fits around the stud, 100/Case - 7010351307

Sold As: 10-Pack
SKU: 7010351307
MPN: 7010351307
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128590024
3M ID: 80611466485
5 Digit UPC: 59002
$15.96 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)21.2 mm²
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Ring TypeStandard
Terminal StyleStandard
Terminal TypeRing
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
UL File NumberE23438
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)4 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)1.74
Barrel StyleBrazed Seam
Maximum Recommended Voltage Rating600.0
Barrel Length (Imperial)0.39 Inch
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric)9.525
Connection TypeCrimp
Insulation MaterialNylon
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Conductor Size (Imperial)4 AWG
Overall Width (Imperial)0.68
Maximum Conductor Size (Metric)21.2
Connection Width (Imperial)0.375
Maximum Voltage Rating600 to 1000 V
Operating Temperature (Fahrenheit)-40 °F to 221 °F
