3M Products & Supplies

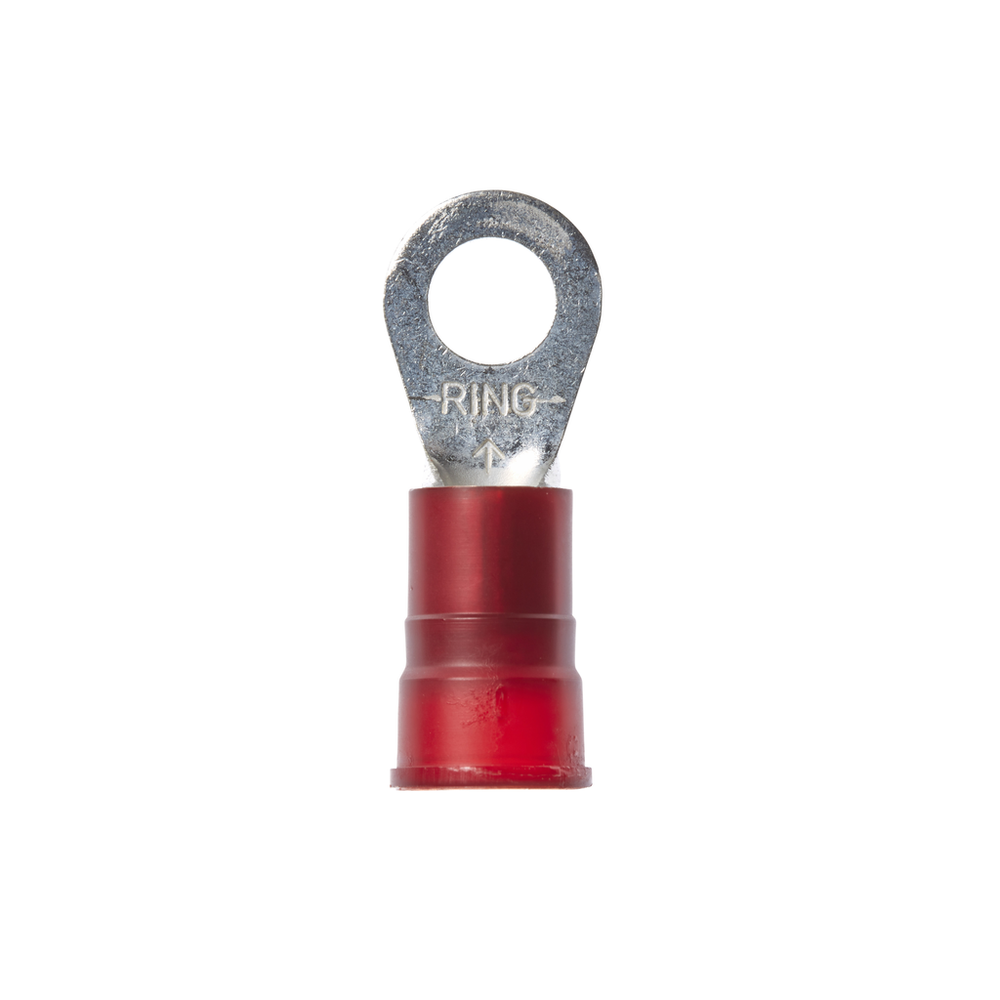

3M™ Scotchlok™ Ring Nylon Insulated, 10/bottle, MN8-14R/SX, standard-style ring tongue fits around the stud, 100/Case - 7100011401

Sold As: 10-Pack
SKU: 7100011401
MPN: 7100011401
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128586355
3M ID: 80611457807
5 Digit UPC: 58635
$42.85 ($4.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Ring TypeStandard
Maximum Recommended Voltage Rating600.0
Terminal TypeRing
Barrel Length (Imperial)0.39 Inch
Overall Width (Metric)11.938
Connection Width (Metric)6.35
Overall Length (Metric)32.004
Connection Width (Metric) UOMmm
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Barrel StyleBrazed Seam
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleStandard
Maximum Conductor Size (Imperial)8 AWG
Maximum Conductor Size (Metric)8.37
Maximum Voltage Rating600 to 1000 V
Overall Width (Imperial)0.47
Overall Width (Metric) UOMmm
UL File NumberE23438
Connection TypeCrimp
Maximum Operating Temperature (Celsius)105.0
Product ColorRed
Connection Width (Imperial)0.25
Connection Width (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Insulation MaterialNylon
Overall Length (Imperial)1.26
Minimum Conductor Size (Imperial)8 AWG
Overall Length (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Minimum Conductor Size (Metric)8.37 mm²
Maximum Operating Temperature (Celsius) UOMDegree
