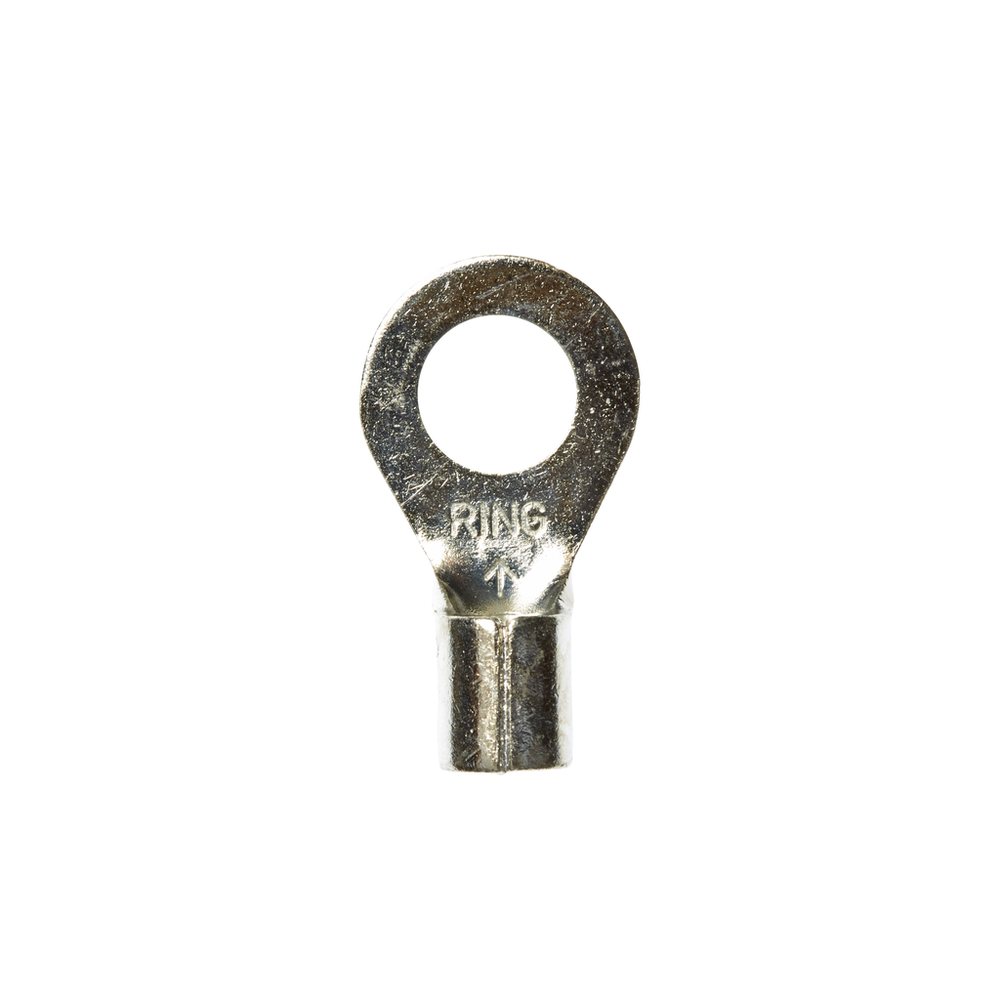

3M™ Scotchlok™ Ring Non-Insulated, 10/bottle, M8-516RX, standard-style ring tongue fits around the stud, 100/Case - 7100165237

Sold As: 100-Pack
SKU: 7100165237
MPN: 7100165237
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128586952
3M ID: 80611458409
5 Digit UPC: 58695
$159.57 ($1.60 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.59
UL File NumberE23438
Minimum Conductor Size (Imperial)8 AWG
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)8 AWG
Connection TypeCrimp
Terminal StyleStandard
Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Minimum Conductor Size (Metric)8.37 mm²
Connection Width (Imperial)0.315
Connection Width (Imperial) UOMin
Connection Width (Metric)8.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)8.37
Ring TypeStandard
