3M Products & Supplies

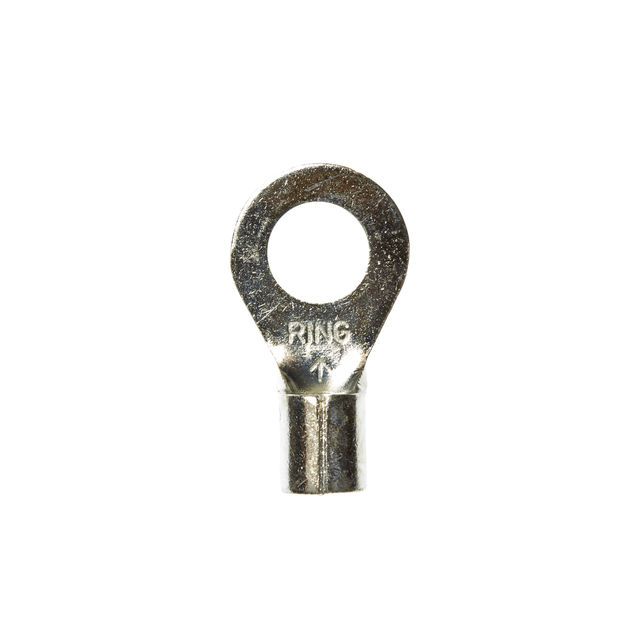

3M™ Scotchlok™ Ring Non-Insulated, 10/bottle, M6-516RX, standard-style ring tongue fits around the stud, 100/Case - 7100165239

Sold As: 100-Pack
SKU: 7100165239
MPN: 7100165239
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128586997
3M ID: 80611458441
5 Digit UPC: 58699
$256.97 ($2.57 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)6 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
UL File NumberE23438
Connection Width (Metric)8.0
Insulation MaterialNon-insulated
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)175.0
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)13.3
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)13.3 mm²
Connection Width (Imperial) UOMin
Terminal TypeRing
Overall Length (Imperial)1.22
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)6 AWG
Connection Width (Imperial)0.315
Ring TypeStandard
Overall Width (Imperial)0.63
Barrel StyleBrazed
Connection TypeCrimp
