3M Products & Supplies

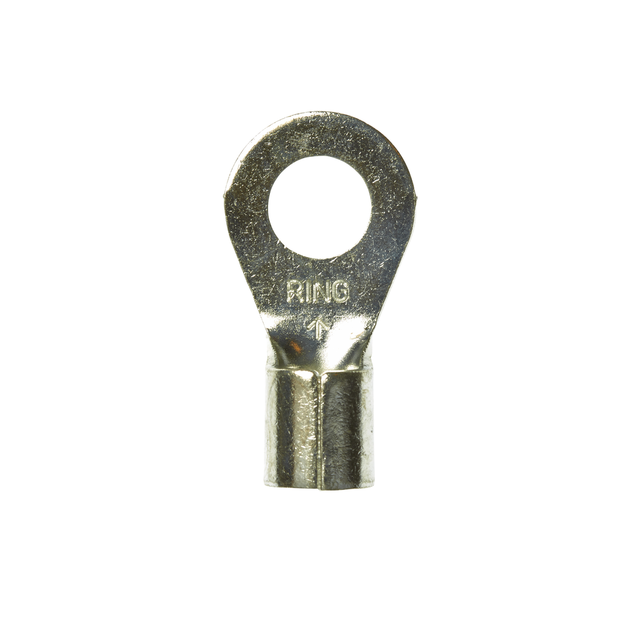

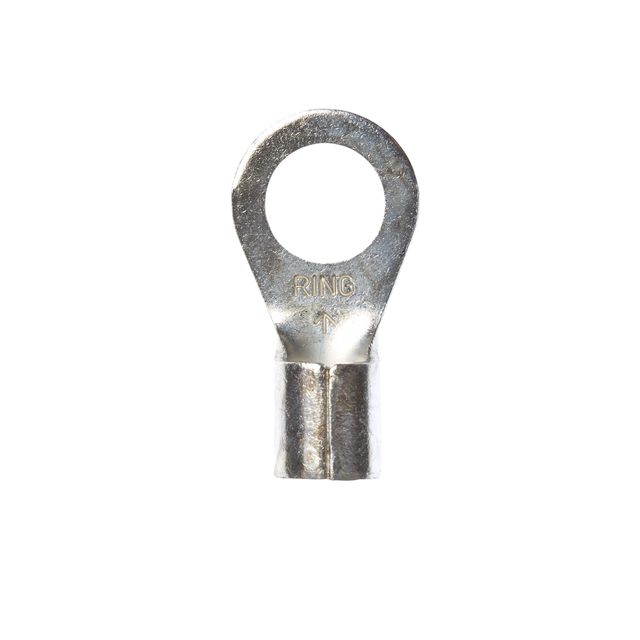

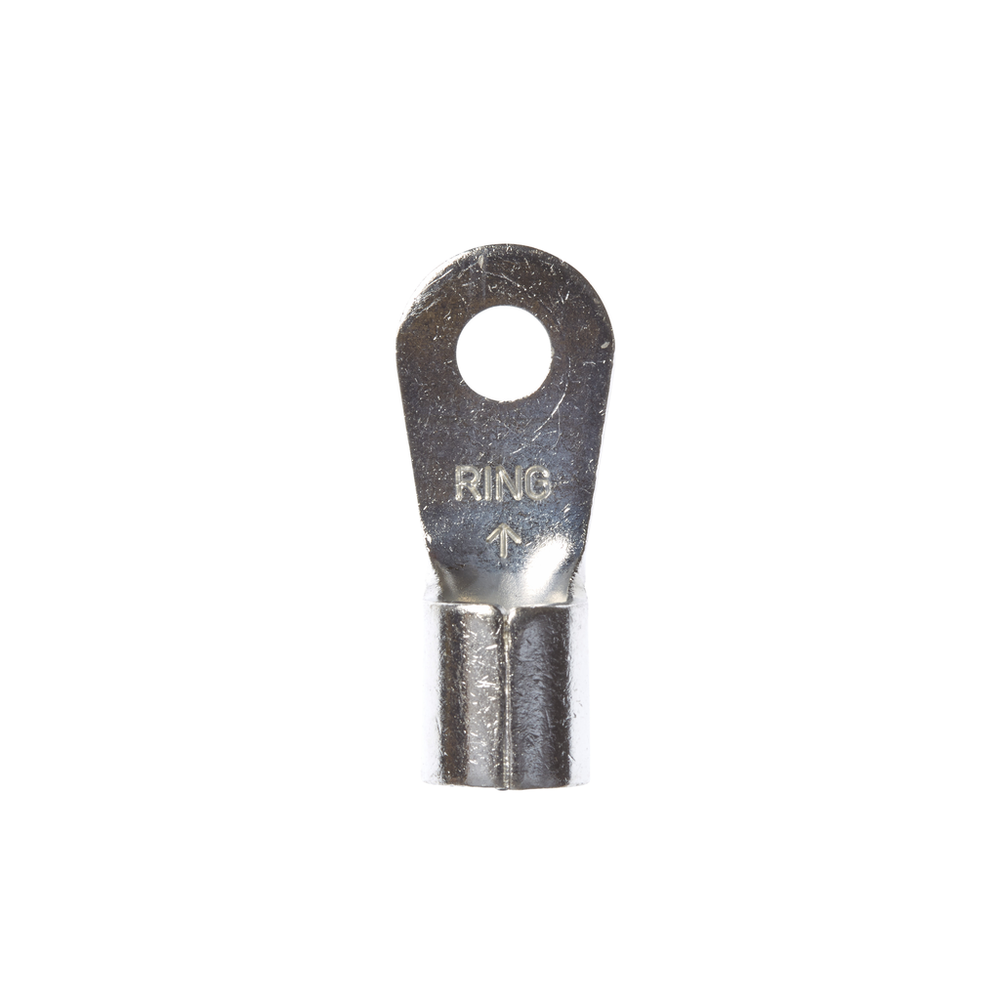

3M™ Scotchlok™ Ring Non-Insulated, 10/bottle, M6-10R/SX, standard-style ring tongue fits around the stud, 100/Case - 7100165238

Sold As: 100-Pack
SKU: 7100165238
MPN: 7100165238
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128586973
3M ID: 80611458425
5 Digit UPC: 58697
$256.97 ($2.57 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.47
Connection Width (Metric) UOMmm
Ring TypeStandard
UL File NumberE23438
Minimum Conductor Size (Imperial)6 AWG
Maximum Conductor Size (Imperial)6 AWG
Barrel StyleBrazed
Connection Width (Imperial)0.19
Connection Width (Imperial) UOMin
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)175.0
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)13.3 mm²
Terminal StyleStandard
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)13.3
Connection Width (Metric)4.826
Connection TypeCrimp
Barrel Length (Imperial)0.25 Inch
