3M Products & Supplies

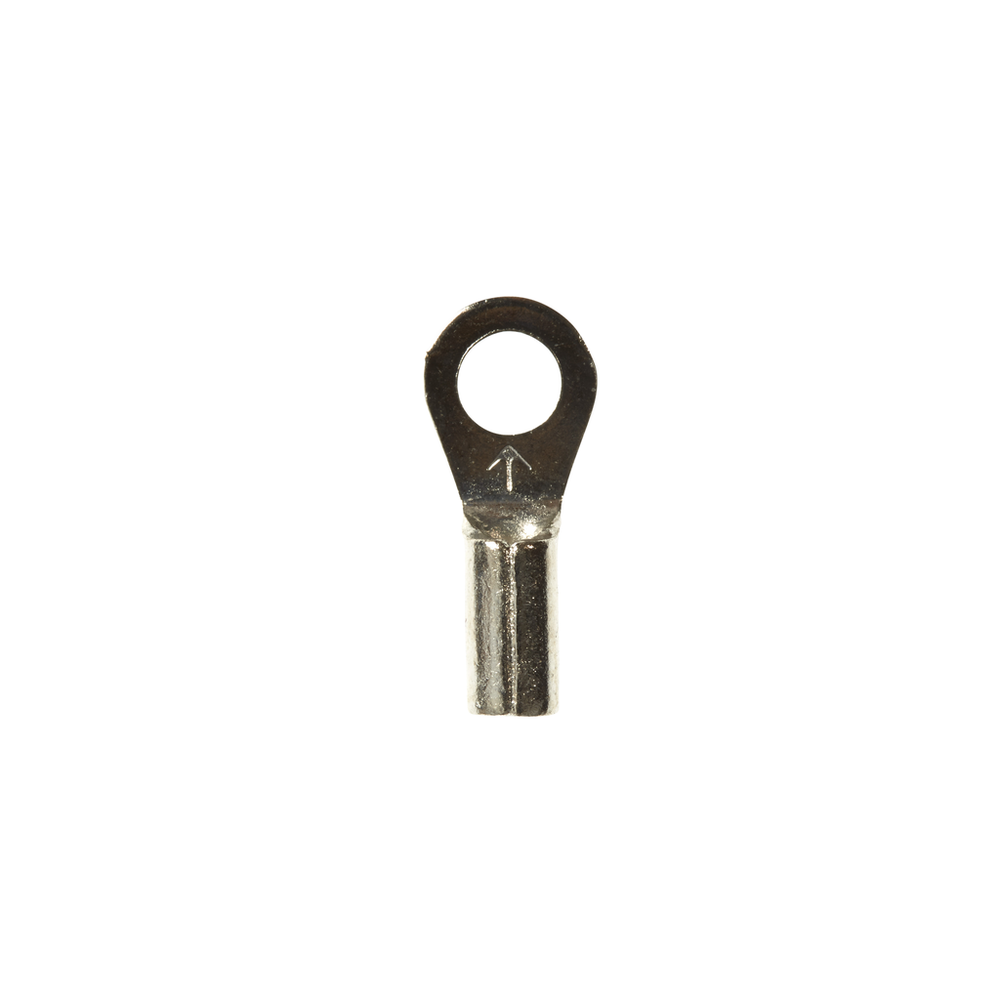

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, M18-6R/SX, standard-style ring tongue fits around the stud, 500/Case - 7010399912

Sold As: 100-Pack
SKU: 7010399912
MPN: 7010399912
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128586409
3M ID: 80611457856
5 Digit UPC: 58640
$46.67 ($0.47 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Overall Length (Imperial)0.6
Terminal TypeRing
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Metric) UOMmm
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Metric)0.823
Barrel StyleBrazed
Overall Width (Imperial)0.25
Ring TypeStandard
Connection TypeCrimp
Terminal StyleStandard
Connection Width (Metric)3.5
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial)0.138
Minimum Conductor Size (Imperial)22 AWG
