3M Products & Supplies

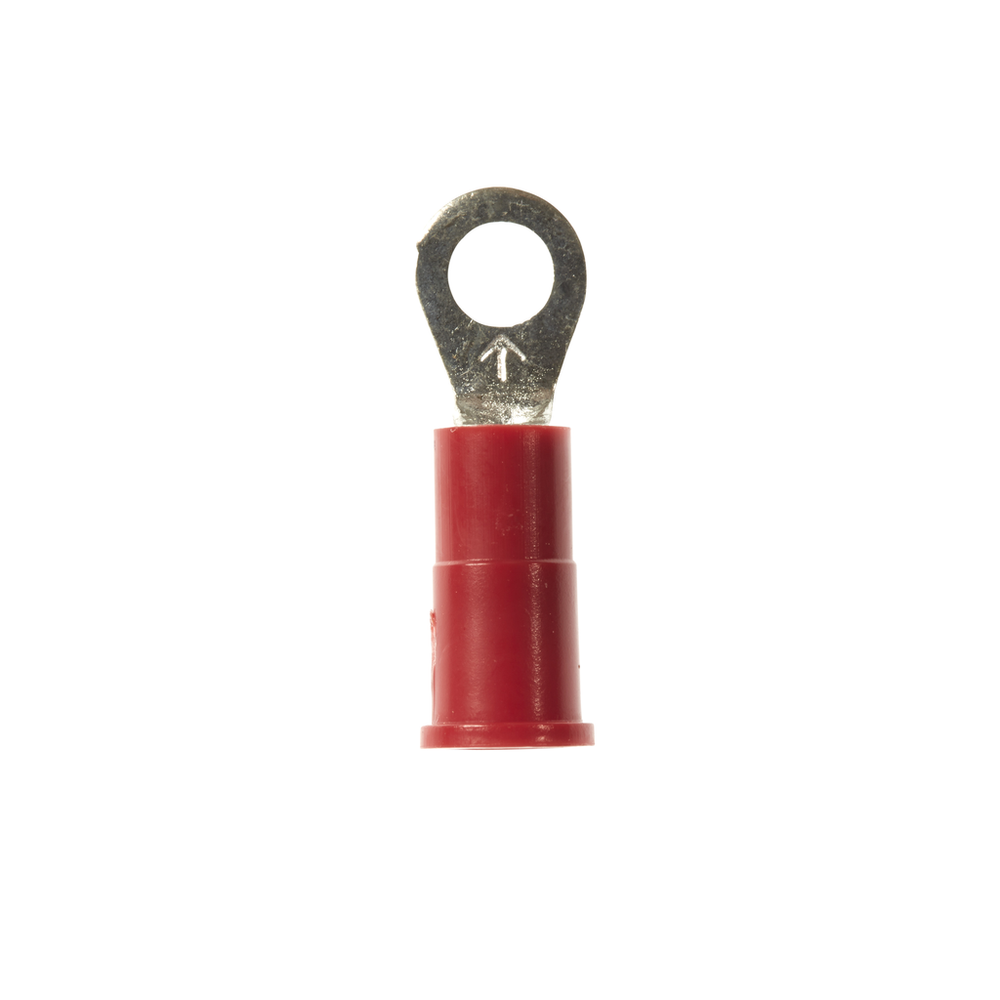

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV18-6R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133314

Sold As: 100-Pack
SKU: 7000133314
MPN: 7000133314
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587300
3M ID: 80611458755
5 Digit UPC: 58730
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.25
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius)105.0
Terminal StyleStandard
Overall Length (Imperial) UOMin
Connection Width (Metric)3.5
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Imperial)22 AWG
Barrel StyleBrazed
Connection Width (Metric) UOMmm
UL File NumberE23438
Solution forWireless Network: Infrastructure Accessories
Connection Width (Imperial)0.138
Overall Width (Metric) UOMmm
Product ColorRed
Terminal TypeRing
Overall Length (Metric)20.32
Barrel Length (Imperial)0.25 Inch
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Width (Metric)6.35
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.8
Ring TypeStandard
