3M Products & Supplies

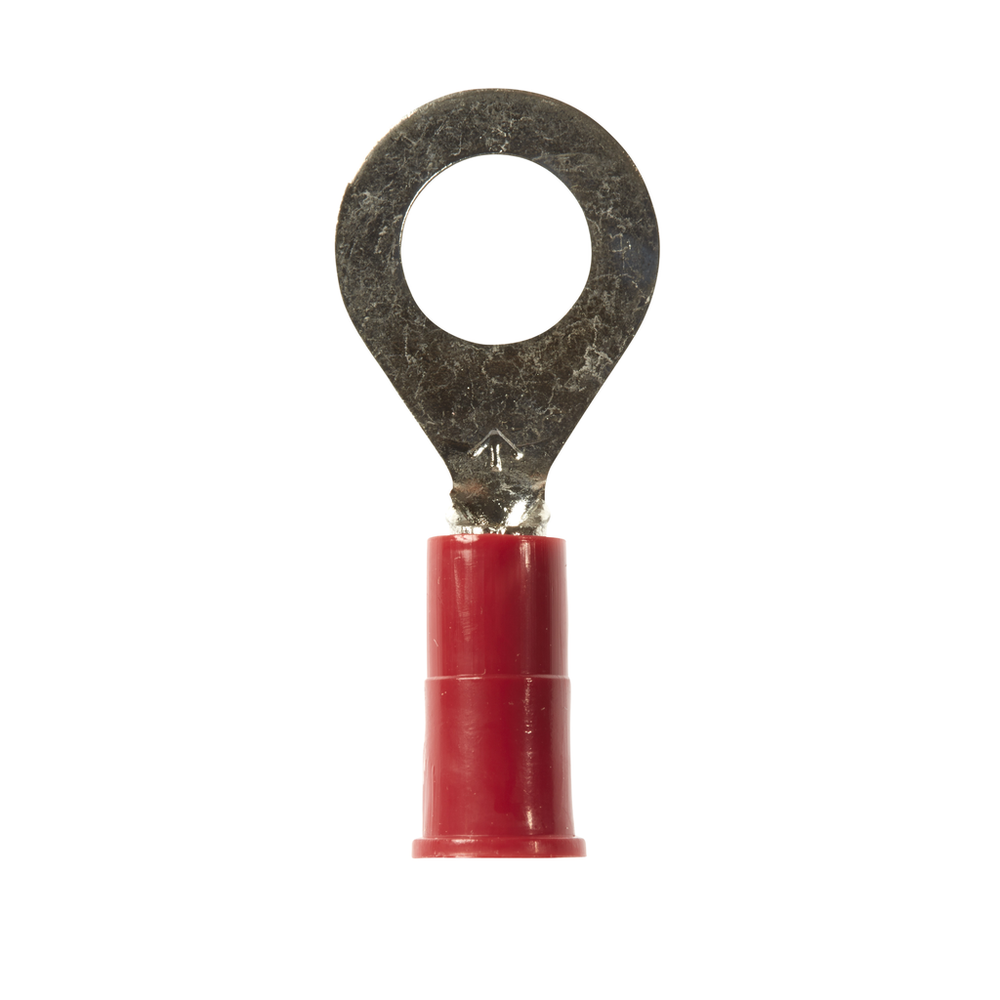

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV18-14R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133317

Sold As: 100-Pack
SKU: 7000133317
MPN: 7000133317
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587331
3M ID: 80611458789
5 Digit UPC: 58733
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)0.823
Solution forWireless Network: Infrastructure Accessories
Overall Width (Metric)11.93
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
Insulation MaterialVinyl
Overall Length (Metric) UOMmm
Connection Width (Imperial)0.25
Barrel StyleBrazed
Connection Width (Metric)6.35
Connection Width (Imperial) UOMin
Overall Length (Imperial)1.08
Overall Width (Metric) UOMmm
Terminal StyleStandard
Overall Length (Metric)27.43
Product ColorRed
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)0.326 mm²
Ring TypeStandard
Terminal TypeRing
Overall Width (Imperial)0.47
Connection Width (Metric) UOMmm
UL File NumberE23438
