3M Products & Supplies

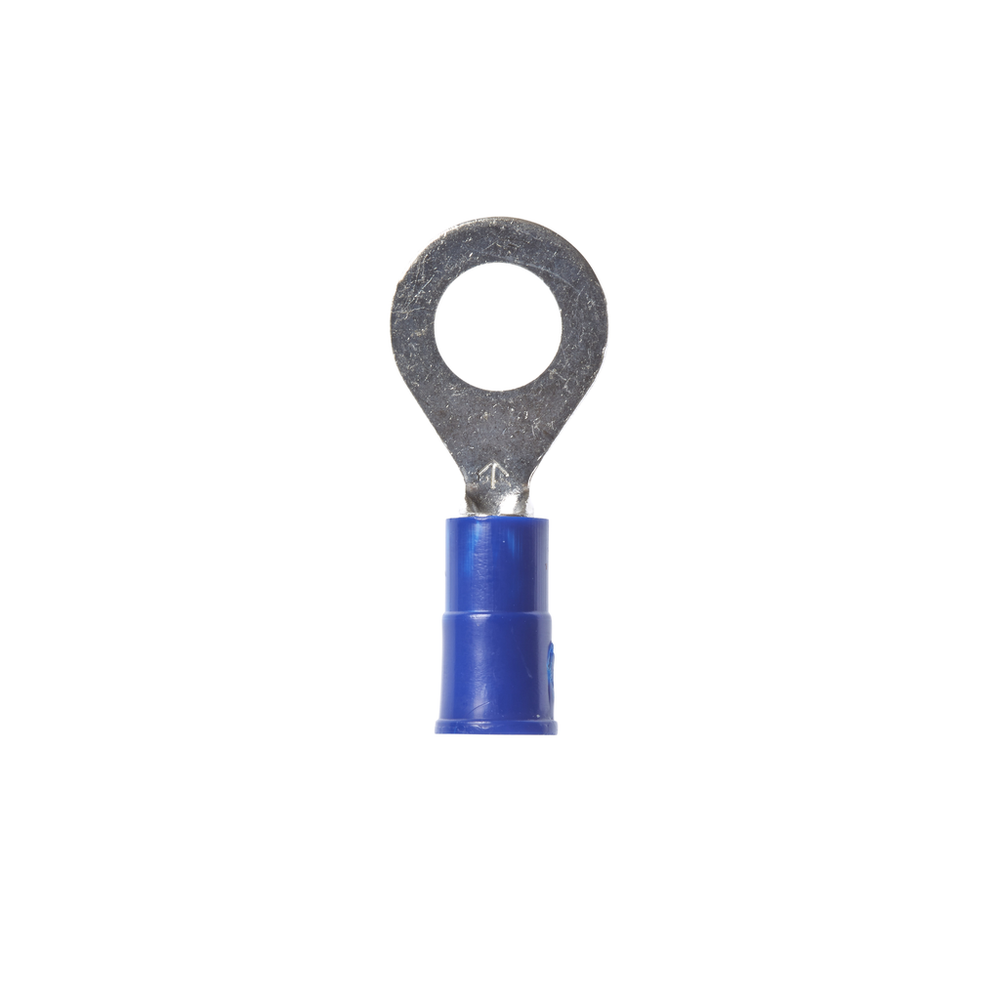

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MVU14-14R/SX, standard-style ring tongue fits around the stud, 500/Case - 7100165257

Sold As: 500-Pack
SKU: 7100165257
MPN: 7100165257
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128588208
3M ID: 80611464662
5 Digit UPC: 58820
$214.66 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.25
Connection Width (Imperial) UOMin
Connection TypeCrimp
Overall Length (Imperial)1.08
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric)6.35
Terminal TypeRing
Connection Width (Metric) UOMmm
Overall Width (Imperial)0.47
Minimum Conductor Size (Imperial)16 AWG
Insulation MaterialVinyl
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)2.08
