3M Products & Supplies

3M™ Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-610RX, 500/Case - 7000133411

Sold As: 500-Pack
SKU: 7000133411
MPN: 7000133411
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589588
3M ID: 80611466048
5 Digit UPC: 58958
$486.95 ($0.97 / Count)
Hurry up! Current stock:

Product Description

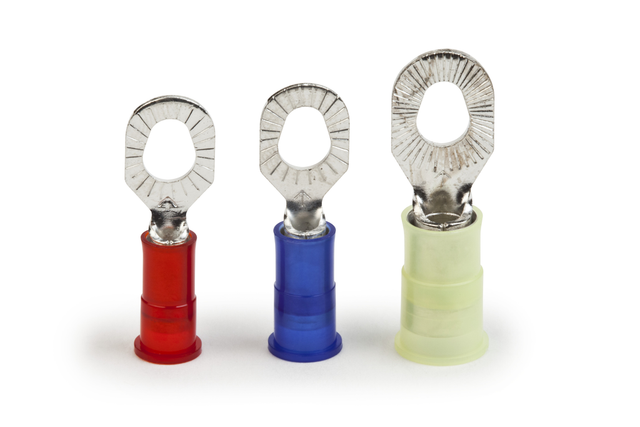

3M™ Scotchlok™ Color-Coded Multi-Stud Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Multi-stud style ring tongue fits around multiple stud sizes
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Stud size #6 to #10

Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNylon
Product ColorRed
Maximum Conductor Size (Imperial)18 AWG
Barrel StyleButted
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Width (Imperial)0.34
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)1.0
Overall Length (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPlastic
Terminal TypeRing
Maximum Recommended Voltage Rating600.0
Overall Width (Metric)8.63
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Metric)25.4
UL File NumberE23438
Terminal StyleMulti-Stud
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Minimum Conductor Size (Metric)0.326 mm²
Maximum Recommended Voltage Rating UOMV
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Voltage Rating600 to 1000 V
