3M Products & Supplies

3M™ Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-610RX, 500/Case - 7000133424

Sold As: 500-Pack
SKU: 7000133424
MPN: 7000133424
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589908
3M ID: 80611466360
5 Digit UPC: 58990
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

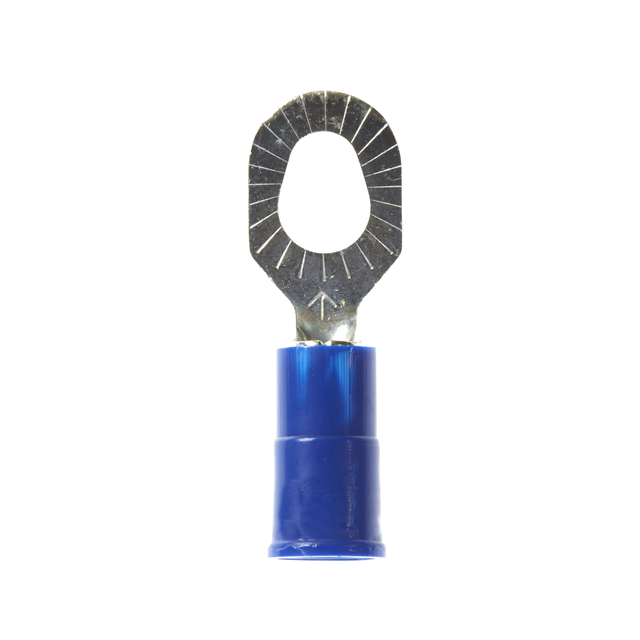

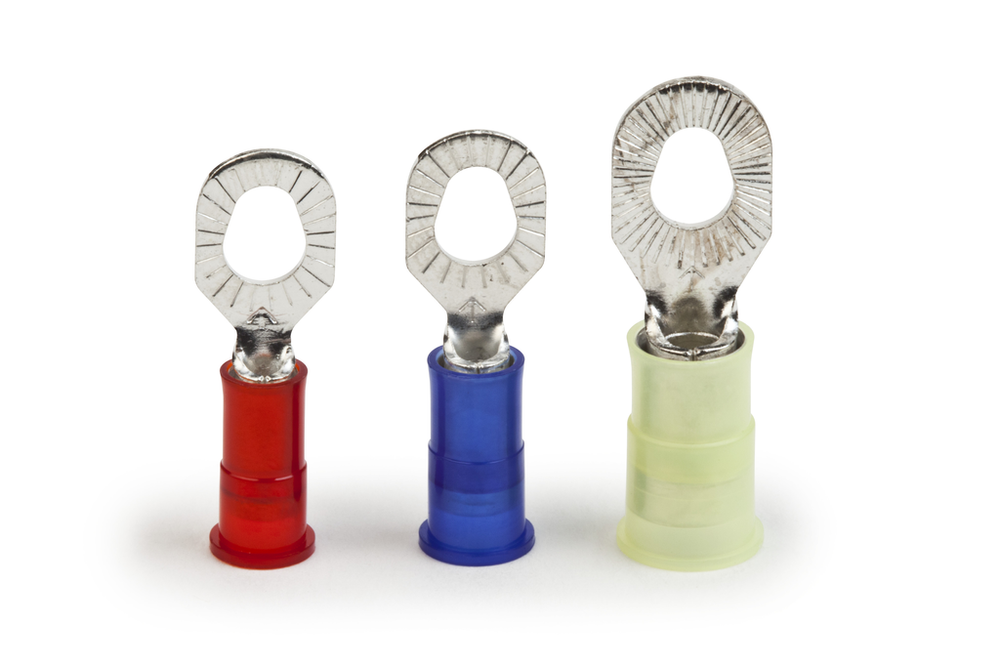

3M™ Scotchlok™ Color-Coded Multi-Stud Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Multi-stud style ring tongue fits around multiple stud sizes
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Stud size #6 to #10

Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Product ColorYellow
Operating Temperature Range (Celsius)-40 °C to 105 °C
MaterialPlastic
Terminal StyleMulti-Stud
Maximum Conductor Size (Imperial)10 AWG
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Overall Width (Imperial)0.39
Overall Length (Imperial) UOMin
Insulation MaterialNylon
Maximum Operating Temperature (Fahrenheit)221.0
Ring TypeStandard
Overall Length (Metric)30.22
Maximum Voltage Rating600 to 1000 V
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Terminal TypeRing
Overall Width (Metric)9.9
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Recommended Voltage Rating600.0
Overall Length (Imperial)1.19
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)5.26
Minimum Conductor Size (Metric)3.31 mm²
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Minimum Conductor Size (Imperial)12 AWG
