3M Products & Supplies

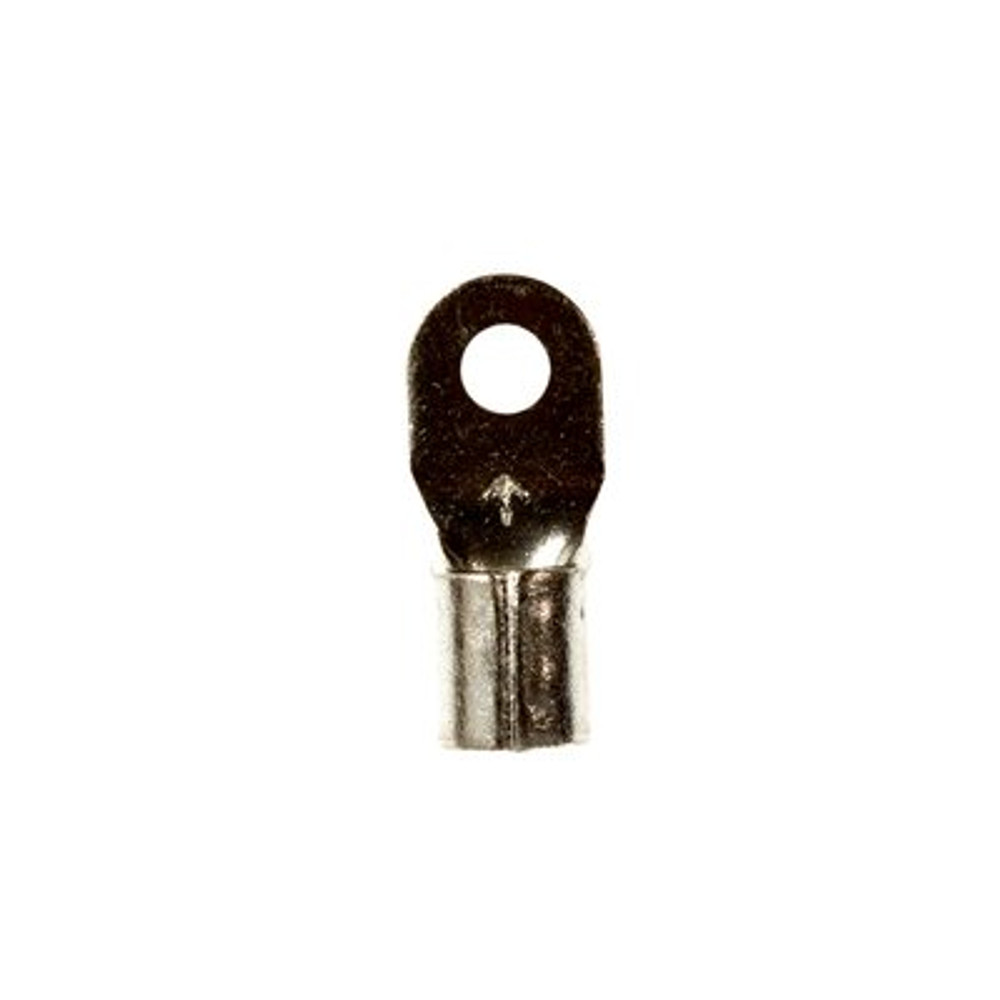

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M10-4R/SK, Stud Size 4, 500/Case - 7100164078

Sold As: 500-Pack
SKU: 7100164078
MPN: 7100164078
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018902
3M ID: 80610048243
5 Digit UPC: 1890
$194.04 ($0.39 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)5.26
Connection Width (Imperial) UOMin
Terminal StyleStandard
Connection Width (Metric)2.845
Ring TypeStandard
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.68
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial)0.112
Barrel StyleBrazed
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)12 AWG
Terminal TypeRing
Overall Width (Imperial)0.28
UL File NumberE23438
Minimum Conductor Size (Metric)3.31 mm²
Connection TypeCrimp
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Imperial)10 AWG
