3M Products & Supplies

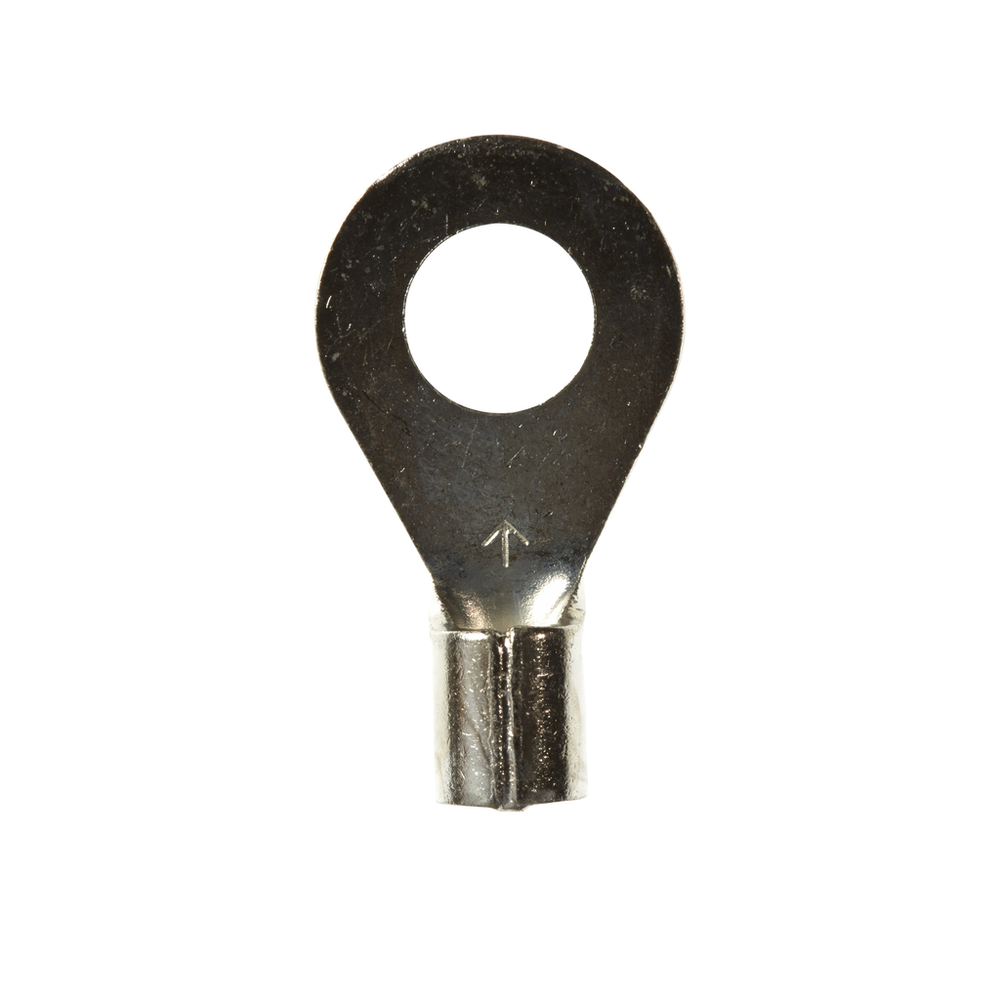

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M10-14R/SK, Stud Size 1/4, 500/Case - 7100027559

Sold As: 500-Pack
SKU: 7100027559
MPN: 7100027559
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018964
3M ID: 80610048300
5 Digit UPC: 1896
$232.26 ($0.46 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Barrel StyleBrazed
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)5.26
Maximum Conductor Size (Imperial)10 AWG
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.25
Minimum Conductor Size (Metric)3.31 mm²
Connection TypeCrimp
Terminal TypeRing
Connection Width (Metric)6.35
Overall Length (Imperial)0.96
Overall Width (Imperial)0.54
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Ring TypeStandard
UL File NumberE23438
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)175.0
