3M Products & Supplies

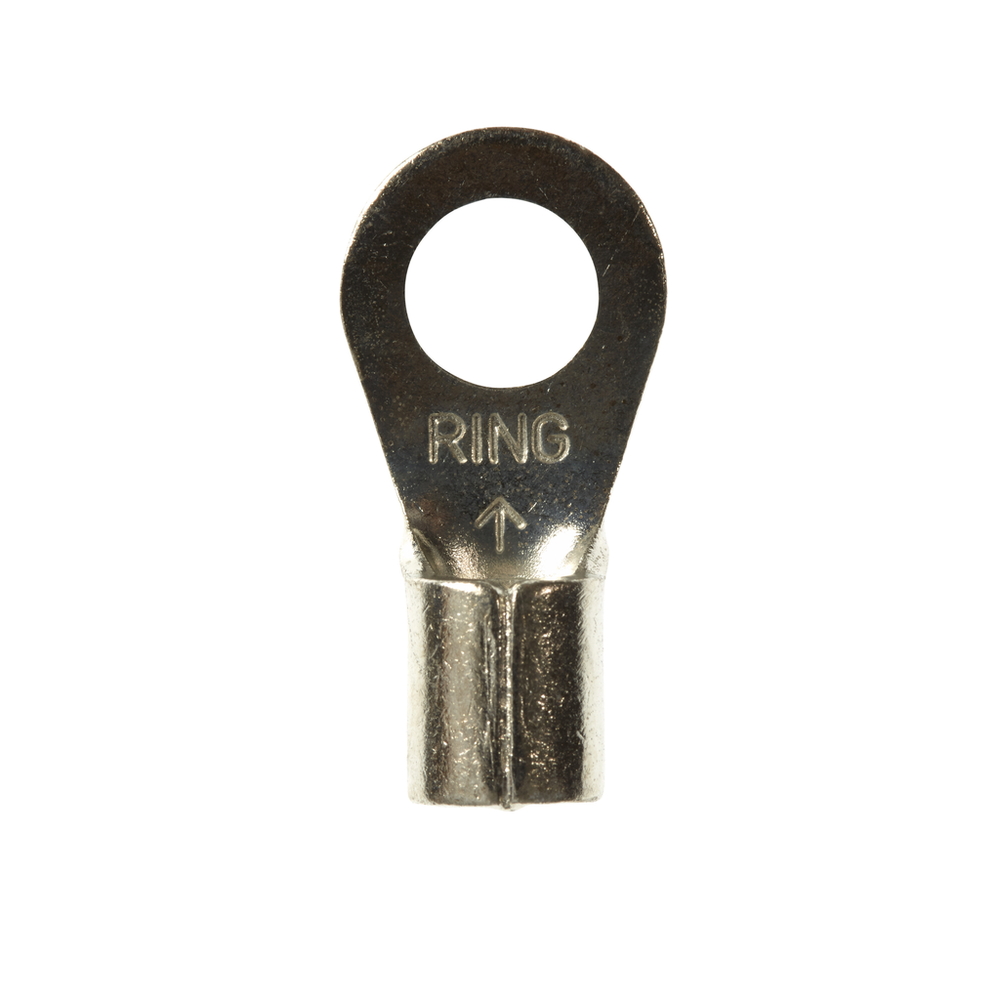

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M8-14R/SK, Stud Size 1/4, 200/Case - 7000132272

Sold As: 200-Pack
SKU: 7000132272
MPN: 7000132272
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021209
3M ID: 80610051254
5 Digit UPC: 2120
$161.83 ($0.81 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.47
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.25
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)8.37
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Connection TypeCrimp
Maximum Operating Temperature (Celsius)175.0
Barrel StyleBrazed
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)8 AWG
Terminal TypeRing
Overall Length (Imperial)0.95
Minimum Conductor Size (Metric)8.37 mm²
Insulation MaterialNon-insulated
Minimum Conductor Size (Imperial)8 AWG
Barrel Length (Imperial)0.25 Inch
UL File NumberE23438
Connection Width (Metric)6.35
Ring TypeStandard
