3M Products & Supplies

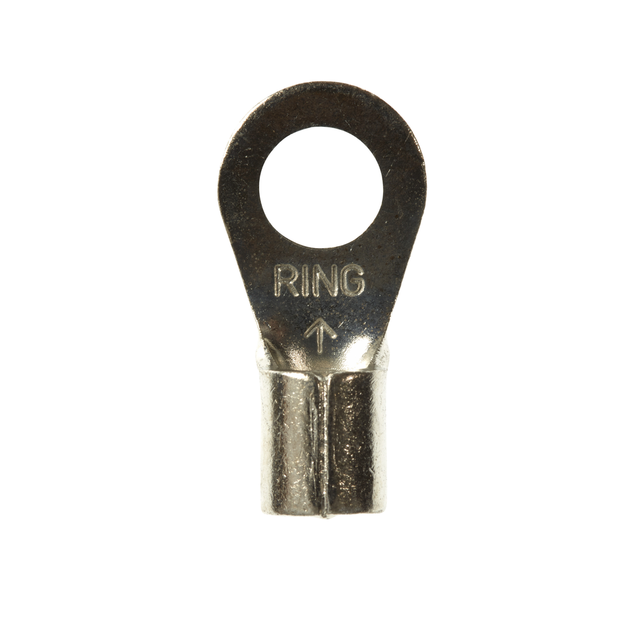

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M14-14R/SK, Stud Size 1/4, 1000/Case - 7100163994

Sold As: 1000-Pack
SKU: 7100163994
MPN: 7100163994
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013907
3M ID: 80610040331
5 Digit UPC: 1390
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Ring TypeStandard
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.25
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)2.08
Connection Width (Metric)6.35
Barrel StyleBrazed
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
Connection TypeCrimp
Overall Length (Imperial)0.89
Overall Width (Imperial)0.47
Connection Width (Metric) UOMmm
Terminal TypeRing
