3M Products & Supplies

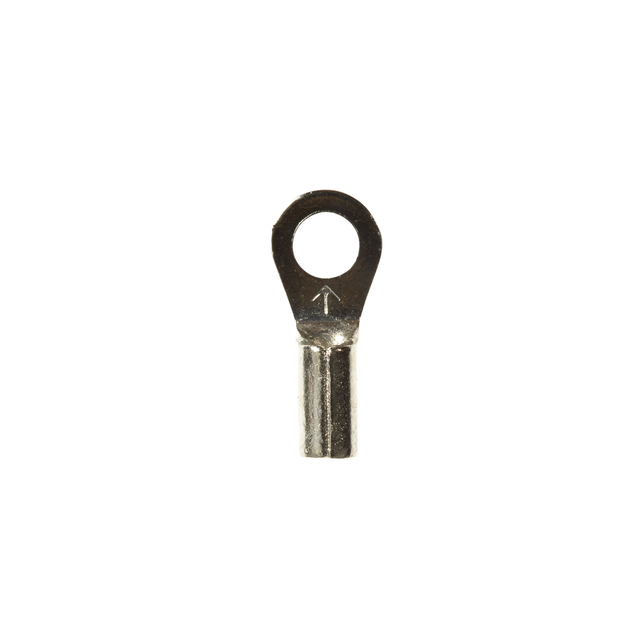

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M14-6R/SK, Stud Size 6, 1000/Case - 7100163990

Sold As: 1000-Pack
SKU: 7100163990
MPN: 7100163990
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013822
3M ID: 80610040257
5 Digit UPC: 1382
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)2.08
Connection Width (Imperial)0.138
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)16 AWG
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeCrimp
Overall Length (Imperial) UOMin
Terminal StyleStandard
Insulation MaterialNon-insulated
Terminal TypeRing
Connection Width (Metric)3.5
Barrel StyleBrazed
Overall Width (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Celsius)175.0
Overall Width (Imperial)0.25
Ring TypeStandard
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.6
