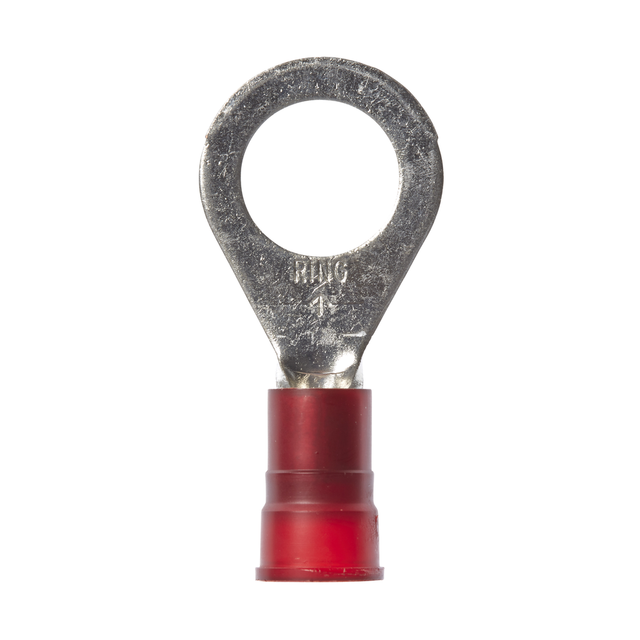

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN8-14R/SK, Stud Size 1/4, 200/Case - 7010397559

Sold As: 200-Pack
SKU: 7010397559
MPN: 7010397559
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007082682
3M ID: 80008006043
5 Digit UPC: 8268
$110.59 ($0.55 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)1.26
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric)6.35
Terminal TypeRing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)8 AWG
Insulation MaterialNylon
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Maximum Recommended Voltage Rating600.0
Terminal StyleStandard
Overall Length (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection TypeCrimp
Ring TypeStandard
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.25
Connection Width (Imperial) UOMin
Maximum Voltage Rating600 to 1000 V
Barrel Length (Imperial)0.39 Inch
Minimum Conductor Size (Imperial)8 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Barrel StyleBrazed Seam
Maximum Conductor Size (Metric)8.37
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Width (Imperial)0.47
UL File NumberE23438
Minimum Conductor Size (Metric)8.37 mm²
