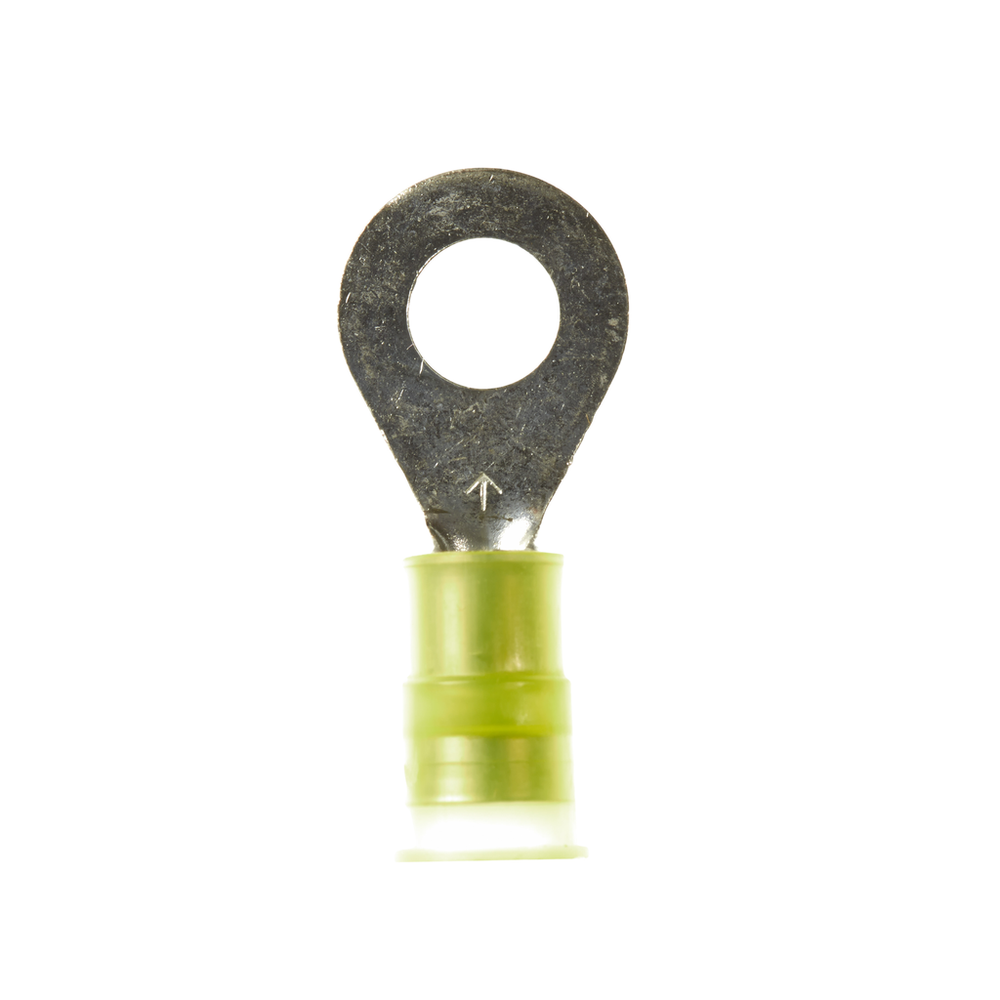

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG10-14R/SK, Stud Size 1/4, 500/Case - 7000132263

Sold As: 500-Pack
SKU: 7000132263
MPN: 7000132263
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019381
3M ID: 80610048722
5 Digit UPC: 1938
$383.57 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Operating Temperature Range (Celsius)-40 °C to 105 °C
MaterialPlastic
Barrel StyleButted
Product ColorYellow
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Metric)5.26
Terminal TypeRing
UL File NumberE23438
Overall Length (Imperial)1.26
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.53
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.25
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection Width (Metric) UOMmm
Insulation MaterialNylon with Insulation Grip
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Metric)6.35
Maximum Recommended Voltage Rating UOMV
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating600.0
Minimum Conductor Size (Metric)3.31 mm²
