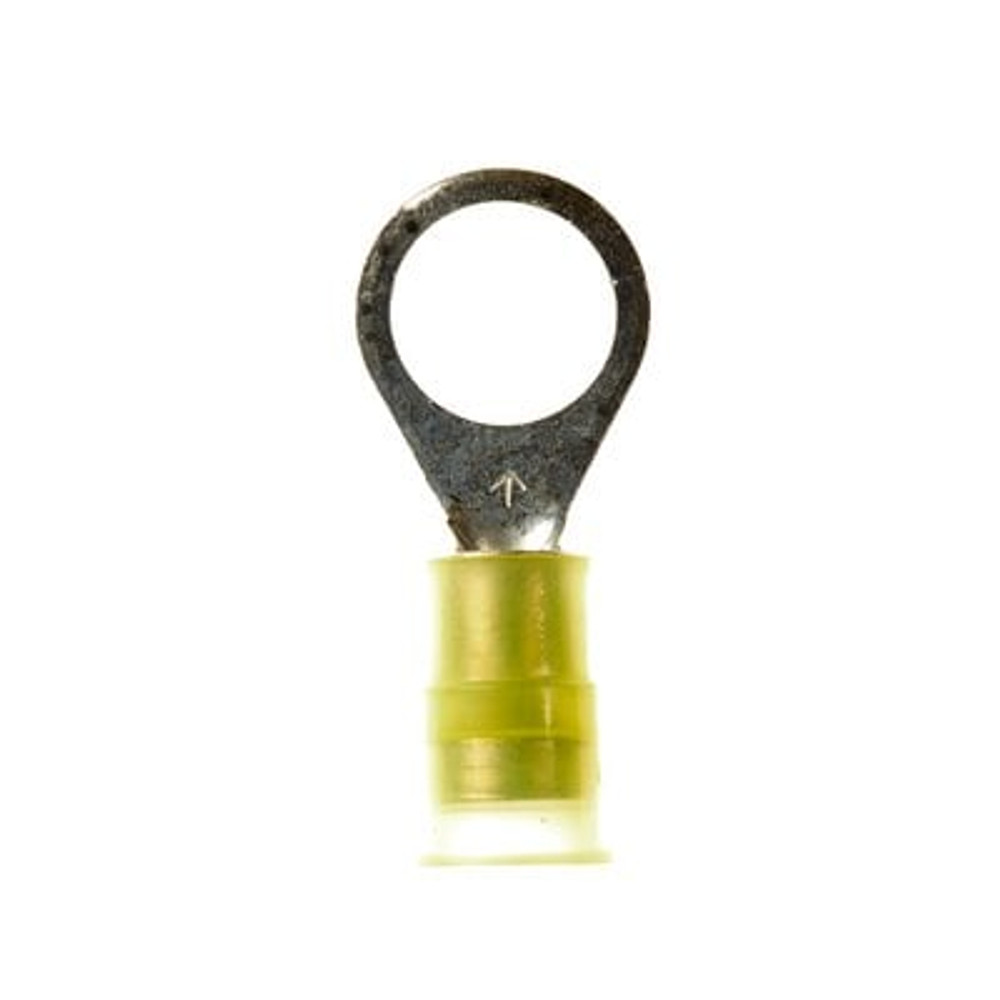

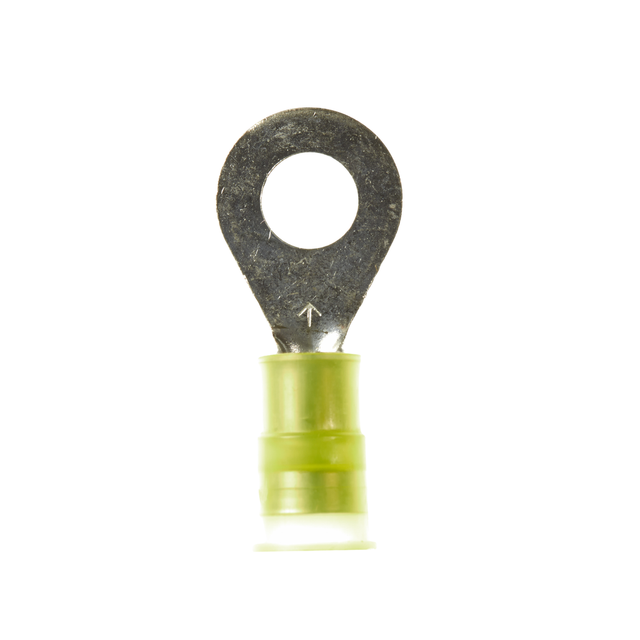

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG10-38R/SK, Stud Size 3/8, 500/Case - 7000132264

Sold As: 500-Pack
SKU: 7000132264
MPN: 7000132264
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019428
3M ID: 80610048763
5 Digit UPC: 1942
$383.57 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)12 AWG
Connection Width (Imperial) UOMin
Ring TypeStandard
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Overall Width (Imperial) UOMin
Product ColorYellow
MaterialPlastic
Maximum Recommended Voltage Rating600.0
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Metric) UOMmm
Overall Width (Imperial)0.54
Maximum Voltage Rating600 to 1000 V
Connection Width (Imperial)0.375
Overall Length (Imperial) UOMin
Terminal TypeRing
Maximum Conductor Size (Metric)5.26
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
Terminal StyleStandard
Maximum Recommended Voltage Rating UOMV
Insulation MaterialNylon with Insulation Grip
Barrel StyleButted
Connection Width (Metric)9.525
Overall Length (Imperial)1.26
