3M Products & Supplies

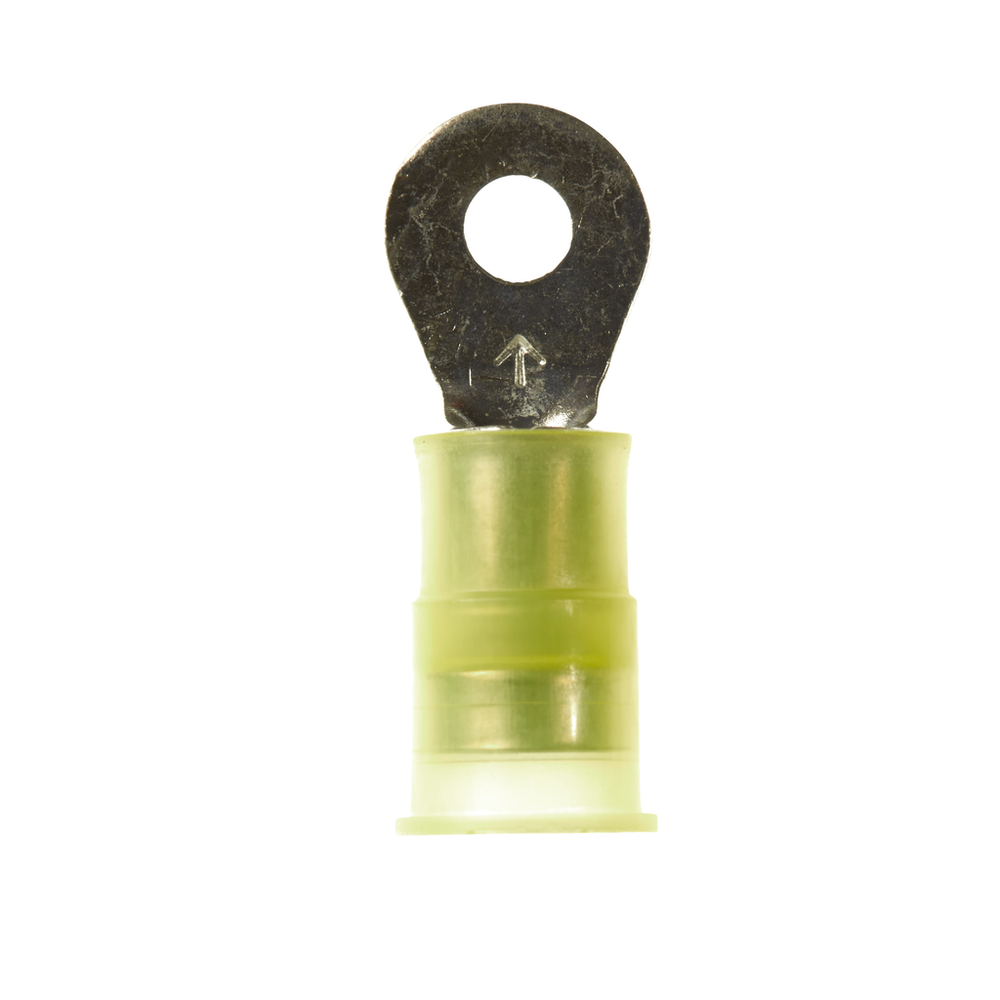

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG10-6RK, Stud Size 6, 500/Case - 7100164089

Sold As: 500-Pack
SKU: 7100164089
MPN: 7100164089
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019343
3M ID: 80610048680
5 Digit UPC: 1934
$404.58 ($0.81 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Overall Length (Imperial)1.03
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Voltage Rating600 to 1000 V
Overall Width (Imperial) UOMin
Barrel StyleButted
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Insulation MaterialNylon with Insulation Grip
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection Width (Imperial)0.138
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.38
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric)3.5
Maximum Operating Temperature (Celsius)105.0
Terminal StyleStandard
Ring TypeStandard
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)5.26
Connection Width (Imperial) UOMin
Operating Temperature Range (Celsius)-40 °C to 105 °C
Terminal TypeRing
MaterialPlastic
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Imperial)10 AWG
