3M Products & Supplies

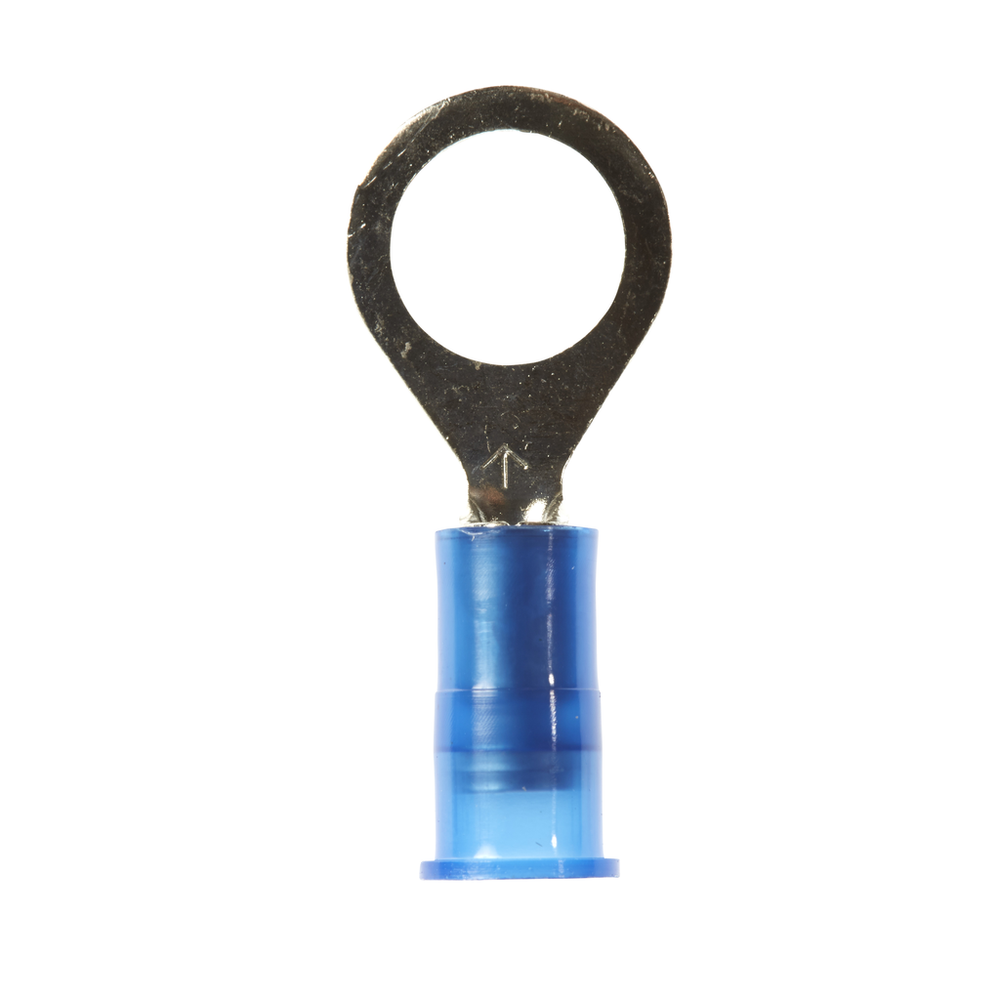

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG14-516R/SK, Stud Size 5/16, 1000/Case - 7100164005

Sold As: 1000-Pack
SKU: 7100164005
MPN: 7100164005
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014409
3M ID: 80610040836
5 Digit UPC: 1440
$674.24 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
MaterialPlastic
Terminal TypeRing
Overall Width (Imperial)0.47
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)2.08
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating UOMV
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNylon with Insulation Grip
Barrel StyleButted
Overall Length (Imperial)1.09
Ring TypeStandard
Connection Width (Metric)8.0
Overall Length (Imperial) UOMin
Maximum Voltage Rating600 to 1000 V
Minimum Conductor Size (Imperial)16 AWG
Maximum Recommended Voltage Rating600.0
Overall Width (Imperial) UOMin
UL File NumberE23438
Minimum Conductor Size (Metric)1.31 mm²
Connection Width (Imperial)0.315
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleStandard
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Conductor Size (Imperial)14 AWG
