3M Products & Supplies

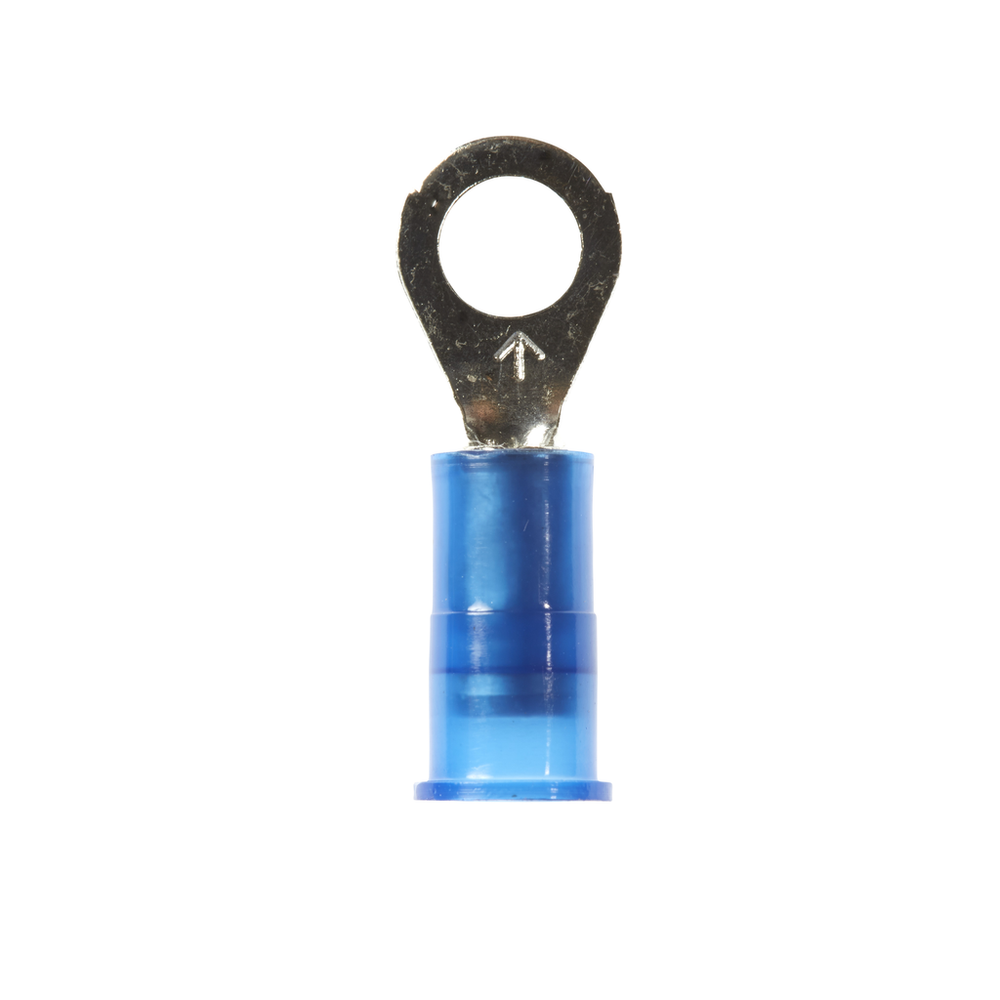

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG14-10RK, Stud Size 10, 1000/Case - 7000132247

Sold As: 1000-Pack
SKU: 7000132247
MPN: 7000132247
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007141501
3M ID: 80610040794
5 Digit UPC: 14150
$579.79 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.19
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08
Barrel StyleButted
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial) UOMin
MaterialPlastic
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating600.0
Overall Length (Imperial)0.91
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Connection Width (Imperial) UOMin
Connection Width (Metric)4.826
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric) UOMmm
Terminal StyleStandard
Maximum Voltage Rating600 to 1000 V
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Width (Imperial)0.33
Insulation MaterialNylon with Insulation Grip
Overall Length (Imperial) UOMin
Product ColorBlue
UL File NumberE23438
Minimum Conductor Size (Metric)1.31 mm²
