3M Products & Supplies

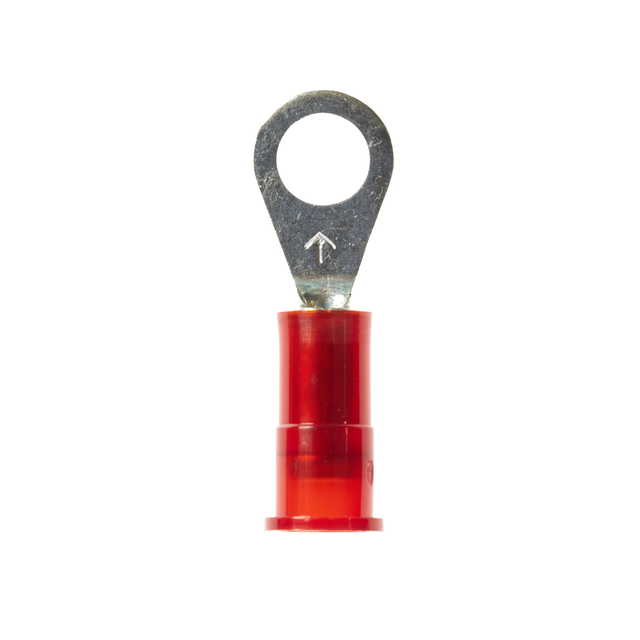

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG14-10R/LK, Stud Size 10, 1000/Case - 7100164004

Sold As: 1000-Pack
SKU: 7100164004
MPN: 7100164004
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014379
3M ID: 80610040802
5 Digit UPC: 1437
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeRing
Maximum Recommended Voltage Rating UOMV
Minimum Conductor Size (Metric)1.31 mm²
UL File NumberE23438
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)14 AWG
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Maximum Voltage Rating600 to 1000 V
Maximum Conductor Size (Metric)2.08
Overall Width (Imperial)0.31
Ring TypeStandard
Connection Width (Metric) UOMmm
Terminal StyleStandard
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.94
Overall Width (Imperial) UOMin
Connection Width (Metric)4.826
MaterialPlastic
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial)0.19
Insulation MaterialNylon with Insulation Grip
Barrel StyleButted
Connection Width (Imperial) UOMin
