3M Products & Supplies

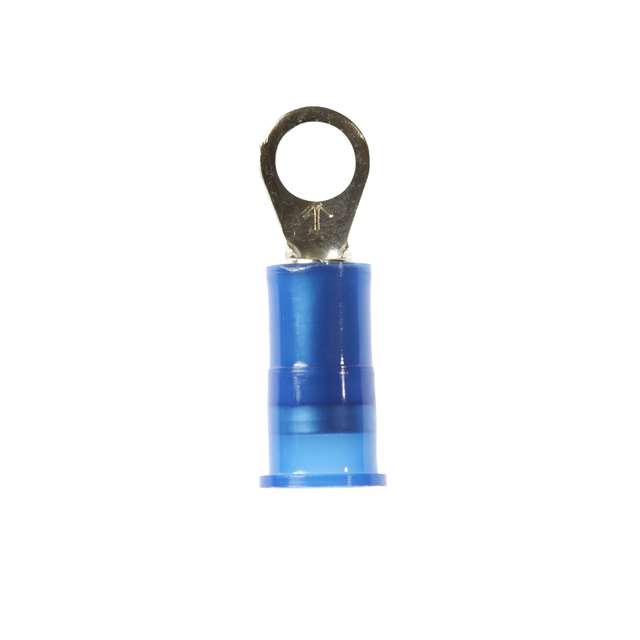

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG14-8RK, Stud Size 8, 1000/Case - 7100164002

Sold As: 1000-Pack
SKU: 7100164002
MPN: 7100164002
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014348
3M ID: 80610040778
5 Digit UPC: 1434
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.91
Maximum Conductor Size (Metric)2.08
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleStandard
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)14 AWG
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Connection Width (Imperial) UOMin
Connection Width (Metric)4.166
Maximum Operating Temperature (Fahrenheit)221.0
Insulation MaterialNylon with Insulation Grip
Maximum Recommended Voltage Rating UOMV
Barrel StyleButted
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Width (Imperial)0.33
UL File NumberE23438
MaterialPlastic
Overall Length (Imperial) UOMin
Terminal TypeRing
Ring TypeStandard
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating600.0
Connection Width (Imperial)0.164
