3M Products & Supplies

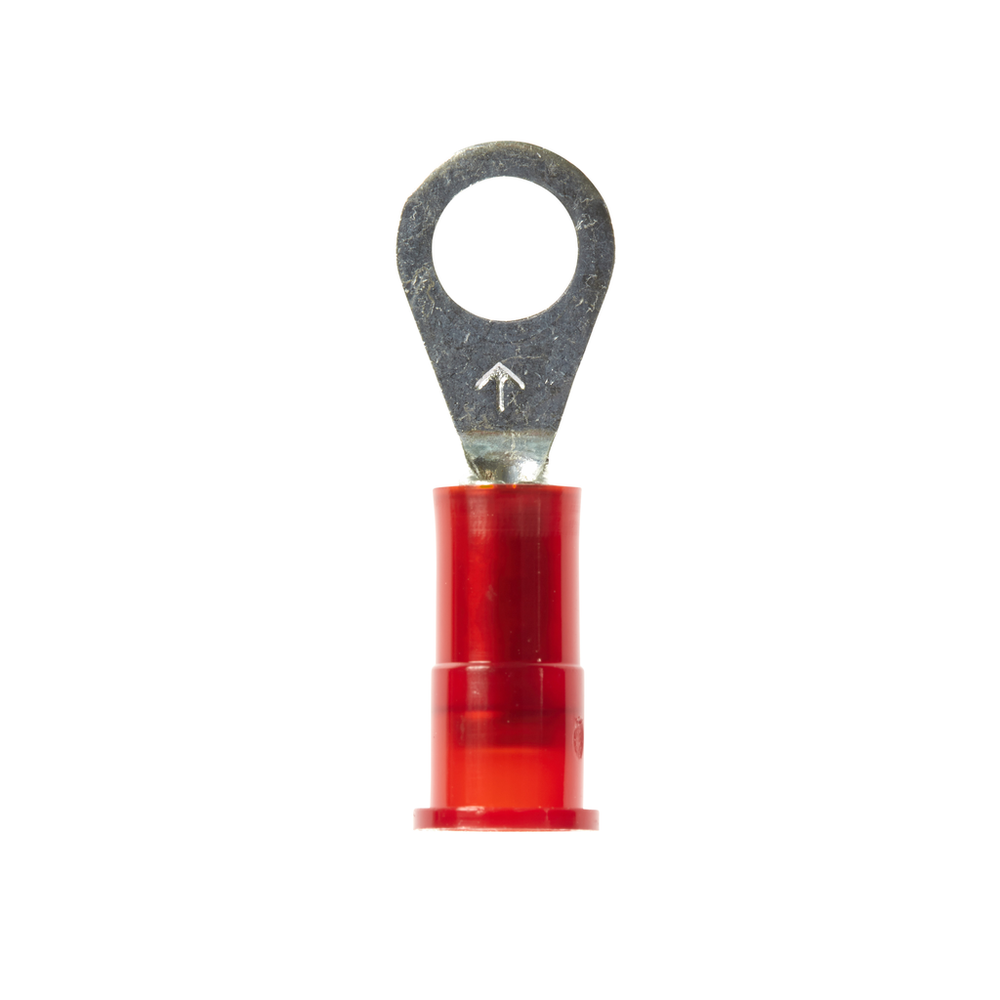

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG18-10R/LK, Stud Size 10, 1000/Case - 7100163929

Sold As: 1000-Pack
SKU: 7100163929
MPN: 7100163929
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010715
3M ID: 80610035380
5 Digit UPC: 1071
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Operating Temperature Range (Celsius)-40 °C to 105 °C
Minimum Conductor Size (Imperial)22 AWG
Overall Width (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.19
Terminal StyleStandard
MaterialPlastic
Overall Length (Imperial)0.92
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Fahrenheit) UOMDegree
Ring TypeStandard
Insulation MaterialNylon with Insulation Grip
UL File NumberE23438
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Metric)4.826
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.31
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Maximum Recommended Voltage Rating600.0
Connection Width (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeRing
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Voltage Rating600 to 1000 V
Barrel StyleButted
