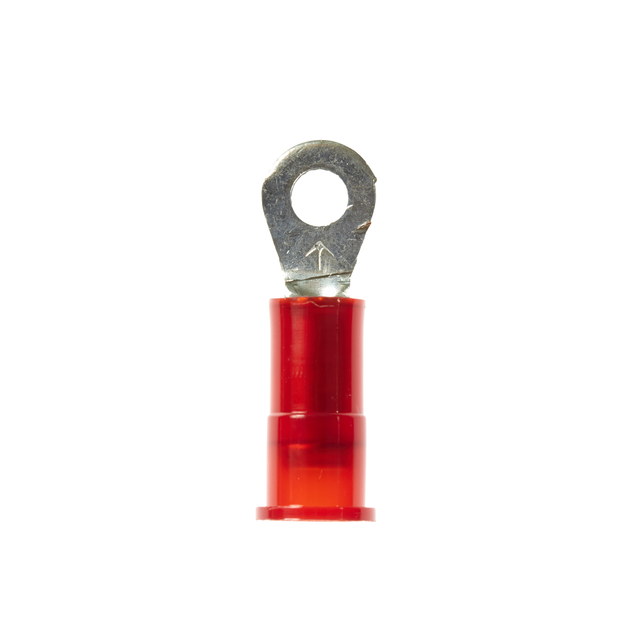

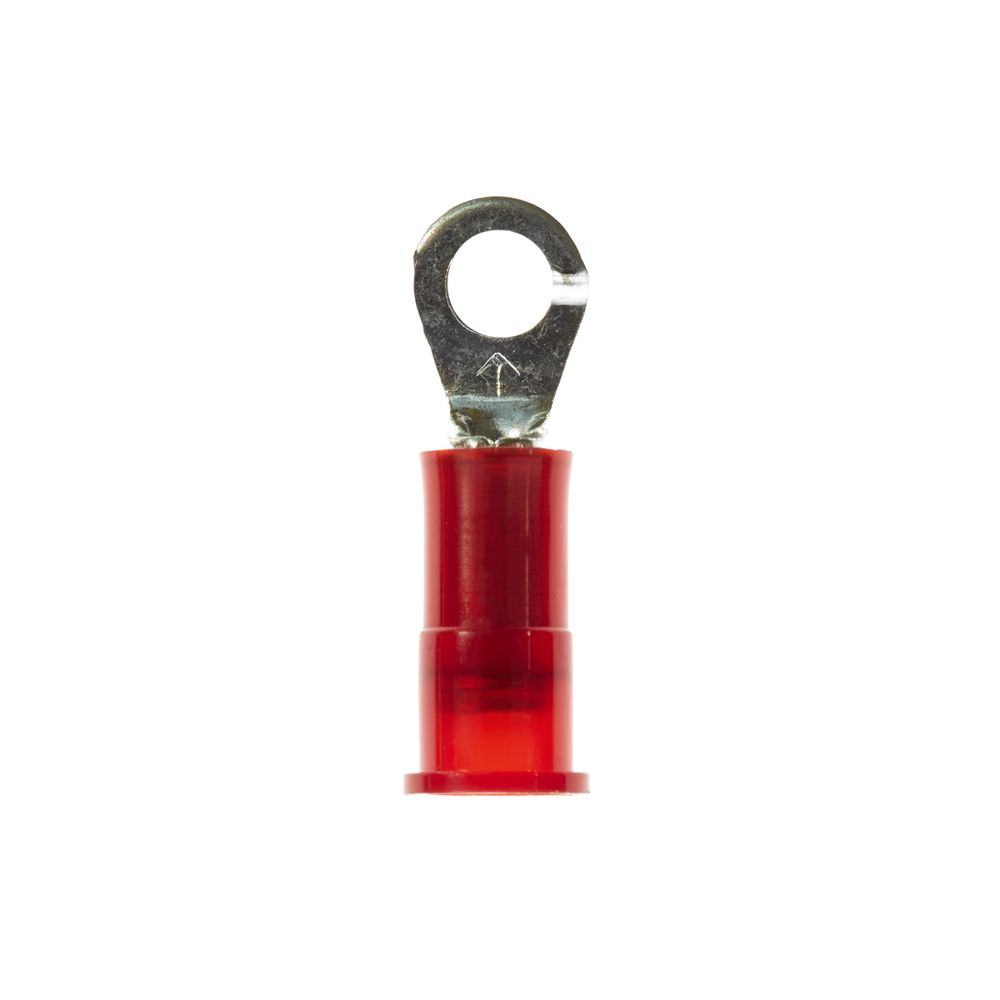

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG18-6R/SK, Stud Size 6, 100/case - 7100163927

Sold As: 1000-Pack
SKU: 7100163927
MPN: 7100163927
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007161639
3M ID: 80610035307
5 Digit UPC: 16163
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius)105.0
Maximum Recommended Voltage Rating600.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Metric)0.823
Insulation MaterialNylon with Insulation Grip
Terminal StyleStandard
Connection Width (Metric) UOMmm
Terminal TypeRing
Connection Width (Imperial)0.138
Barrel StyleButted
Connection Width (Imperial) UOMin
MaterialPlastic
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric)3.5
UL File NumberE23438
Overall Length (Imperial)0.79
Ring TypeStandard
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Imperial)18 AWG
Maximum Voltage Rating600 to 1000 V
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Width (Imperial)0.25
