3M Products & Supplies

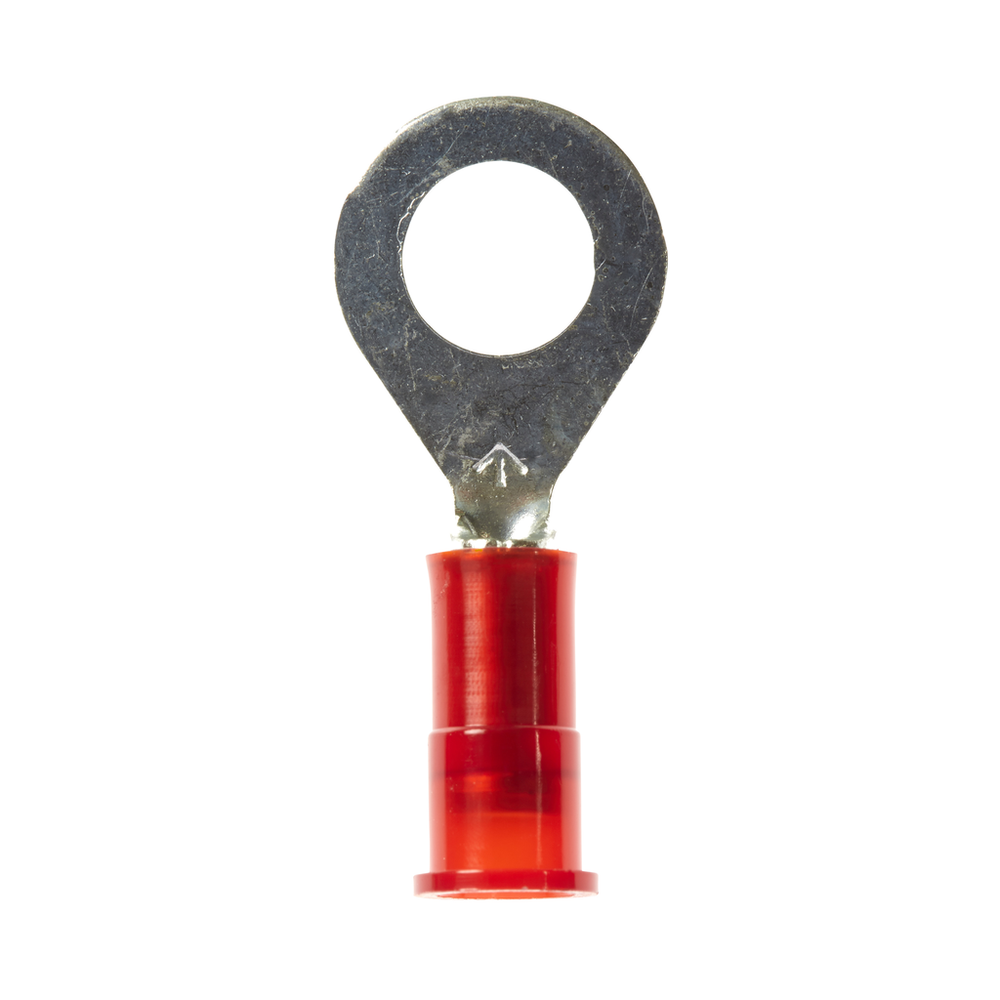

3M™ Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG18-14R/SK, Stud Size 1/4, 1000/Case - 7100163930

Sold As: 1000-Pack
SKU: 7100163930
MPN: 7100163930
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010722
3M ID: 80610035398
5 Digit UPC: 1072
$674.24 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNylon with Insulation Grip
Overall Length (Imperial) UOMin
Barrel StyleButted
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Imperial)18 AWG
Ring TypeStandard
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)1.07
Maximum Recommended Voltage Rating UOMV
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection Width (Imperial) UOMin
Terminal TypeRing
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)6.35
Connection Width (Imperial)0.25
Overall Width (Imperial) UOMin
Terminal StyleStandard
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Imperial)0.47
MaterialPlastic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Voltage Rating600 to 1000 V
Maximum Conductor Size (Metric)0.823
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
