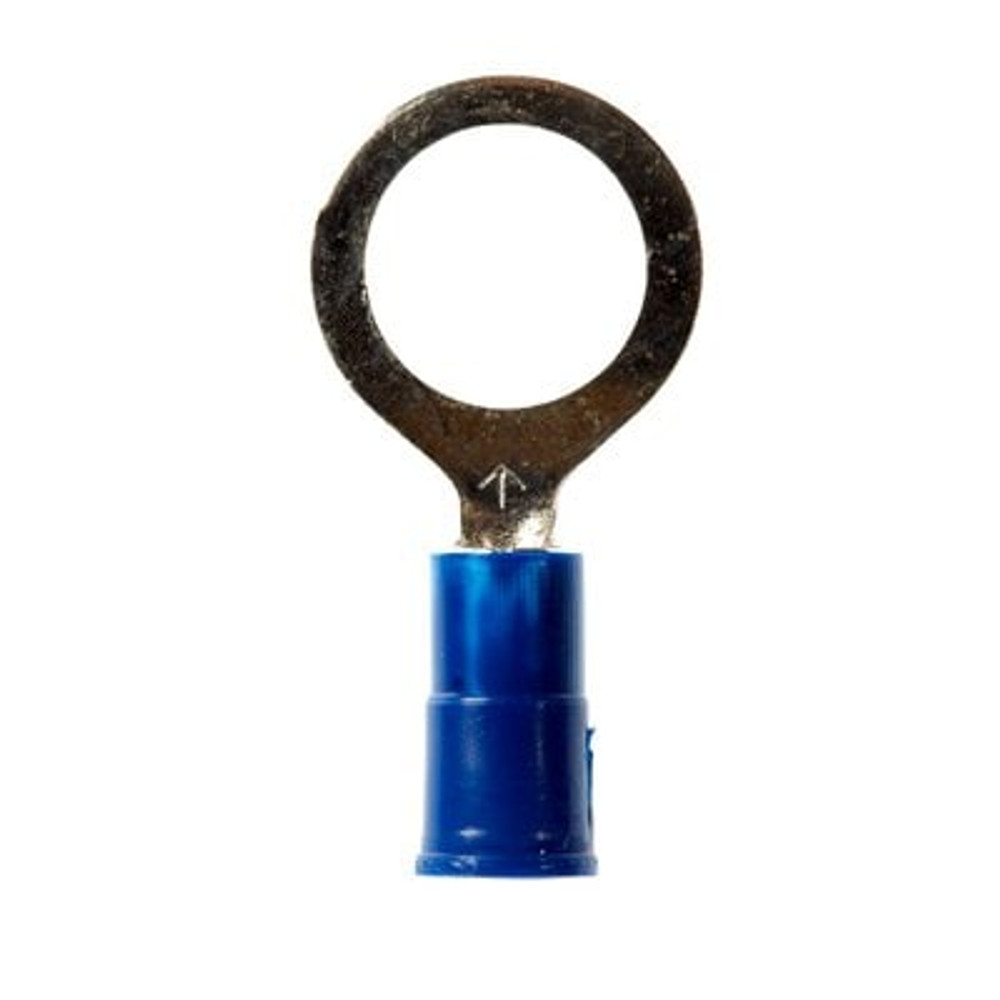

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-38RX, standard-style ring tongue fits around the stud, 500/Case - 7000133330

Sold As: 100-Pack
SKU: 7000133330
MPN: 7000133330
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587515
3M ID: 80611458961
5 Digit UPC: 58751
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal StyleStandard
Connection Width (Imperial)0.375
Barrel Length (Imperial)0.25 Inch
Barrel StyleBrazed
Ring TypeStandard
Connection Width (Metric) UOMmm
Overall Length (Imperial)1.13
Overall Width (Imperial)0.56
Maximum Conductor Size (Metric)2.08
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Metric)1.31 mm²
Connection Width (Metric)9.525
Product ColorBlue
Overall Width (Metric)14.22
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Overall Length (Metric)28.7
Terminal TypeRing
Overall Width (Metric) UOMmm
UL File NumberE23438
