3M Products & Supplies

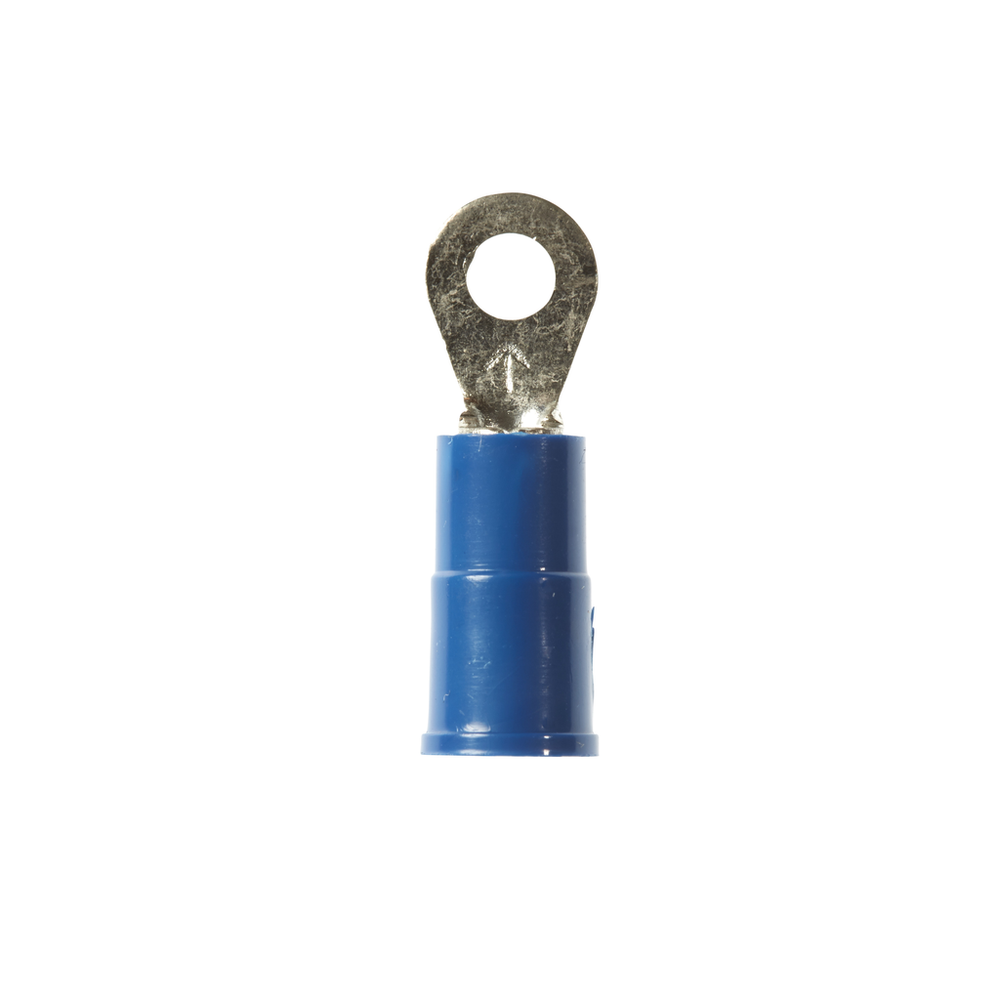

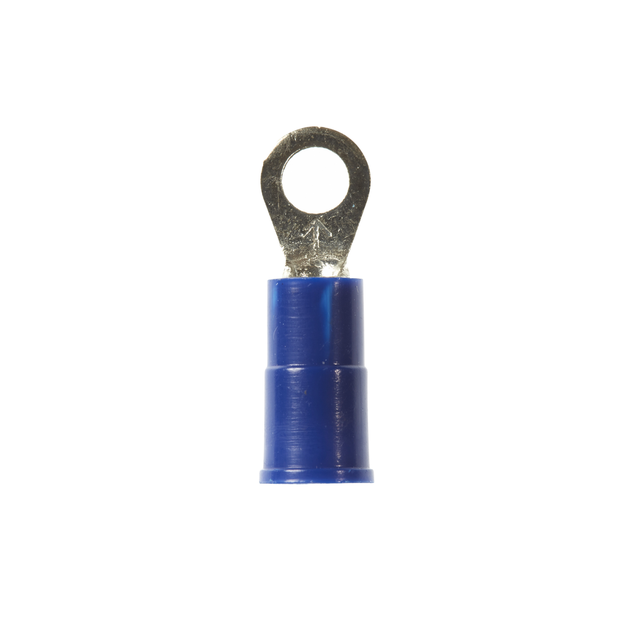

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-4R/SX, standard-style ring tongue fits around the stud, 500/Case - 7100165249

Sold As: 500-Pack
SKU: 7100165249
MPN: 7100165249
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587522
3M ID: 80611458979
5 Digit UPC: 58752
$386.59 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE23438
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.25
Ring TypeStandard
Minimum Conductor Size (Imperial)16 AWG
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Connection Width (Metric) UOMmm
Terminal TypeRing
Maximum Conductor Size (Metric)2.08
Connection Width (Metric)2.845
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial)0.112
Overall Width (Imperial) UOMin
Barrel StyleBrazed
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)0.8
Barrel Length (Imperial)0.25 Inch
