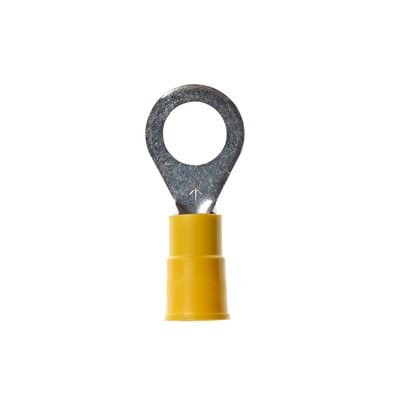

3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-516R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133339

Sold As: 50-Pack
SKU: 7000133339
MPN: 7000133339
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587607
3M ID: 80611464068
5 Digit UPC: 58760
$56.19 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)5.26
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)8.0
Overall Width (Metric) UOMmm
Connection Width (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Connection Width (Metric) UOMmm
Ring TypeStandard
UL File NumberE23438
Overall Length (Metric) UOMmm
Overall Length (Metric)32.0
Maximum Conductor Size (Imperial)10 AWG
Overall Length (Imperial)1.26
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial)0.315
Insulation MaterialVinyl
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.53
Overall Width (Imperial) UOMin
Terminal TypeRing
Product ColorYellow
Overall Width (Metric)13.46
Terminal StyleStandard
Overall Length (Imperial) UOMin
