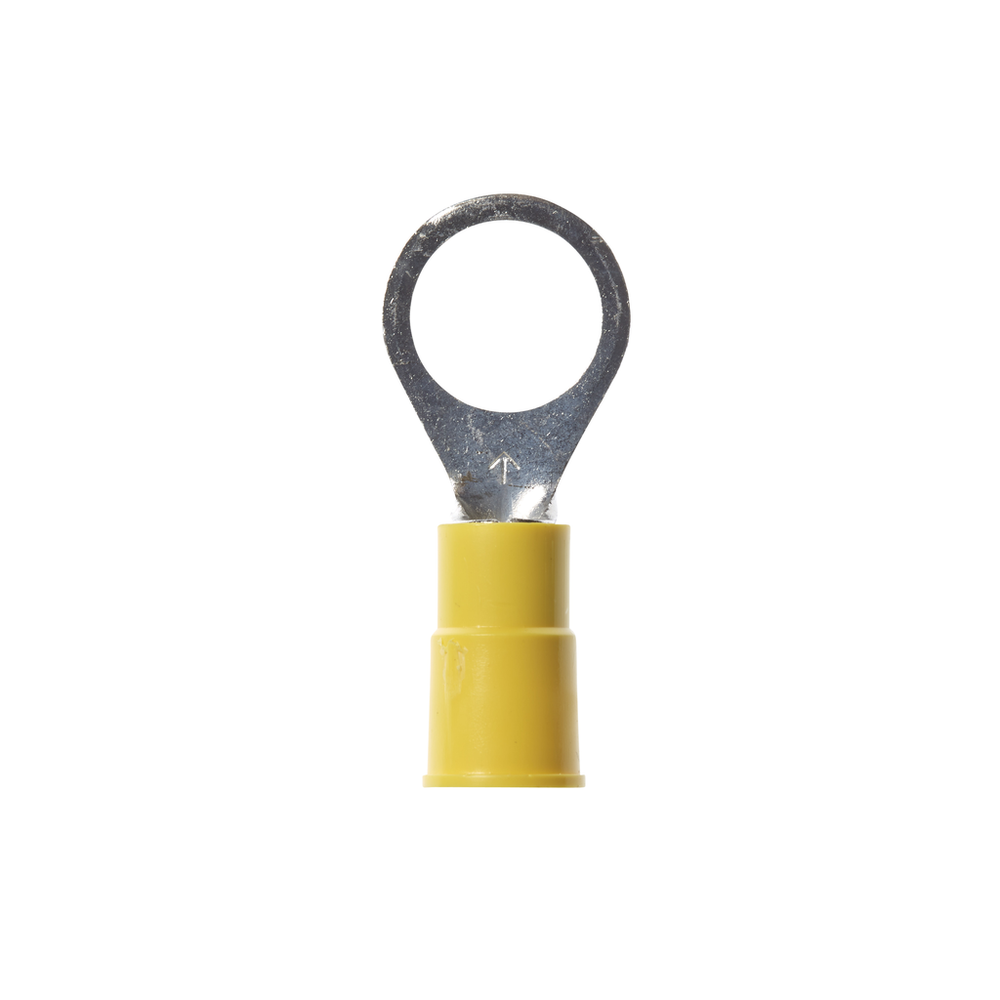

3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-38R/SX, standard-style ring tongue fits around the stud, 500/Case - 7000133421

Sold As: 50-Pack
SKU: 7000133421
MPN: 7000133421
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589830
3M ID: 80611466295
5 Digit UPC: 58983
$56.19 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMmm
Barrel StyleBrazed
Minimum Conductor Size (Imperial)12 AWG
Terminal TypeRing
Overall Length (Imperial)1.26
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)5.26
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial) UOMin
Product ColorYellow
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric) UOMmm
Overall Length (Metric)32.0
Barrel Length (Imperial)0.25 Inch
Solution forWireless Network: Infrastructure Accessories
Connection Width (Imperial) UOMin
Connection Width (Metric)9.525
Overall Width (Imperial)0.54
Ring TypeStandard
Connection Width (Imperial)0.375
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Overall Width (Metric)13.71
UL File NumberE23438
