3M Products & Supplies

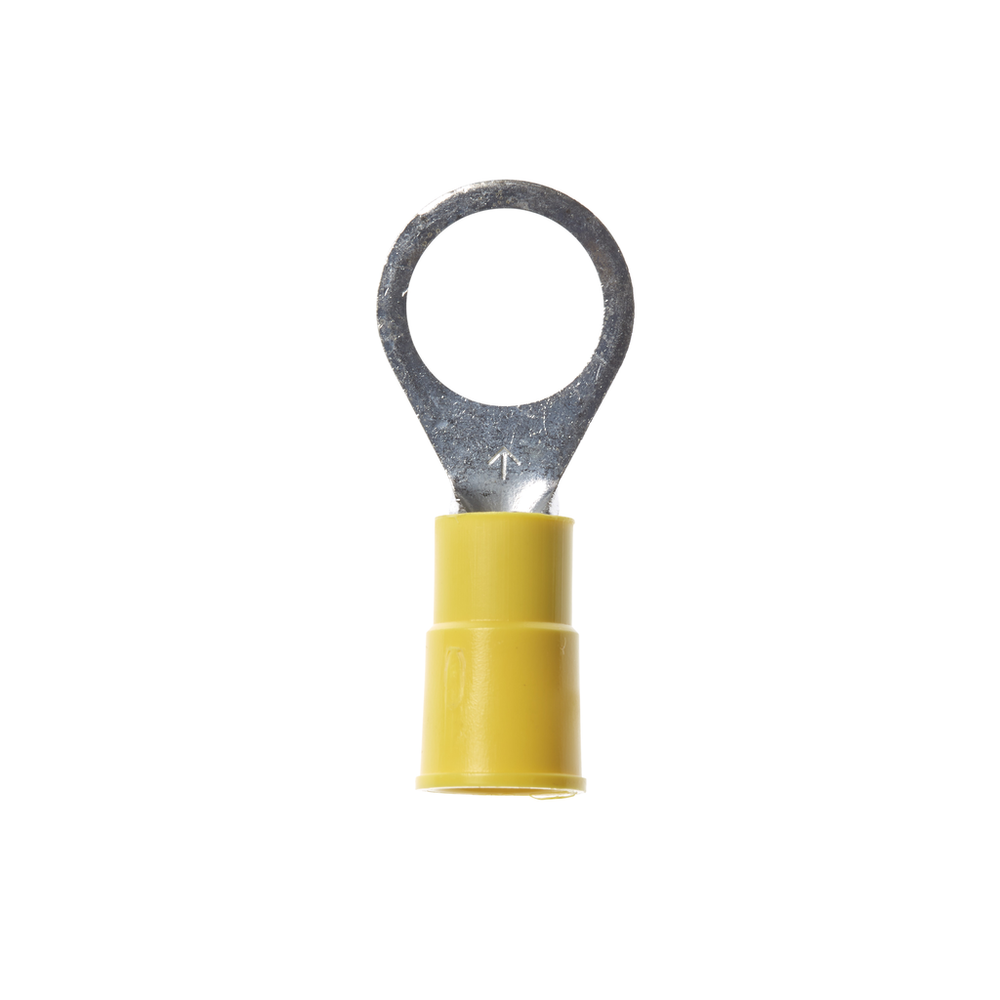

3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MVU10-38R/SX, standard-style ring tongue fits around the stud, 500/Case - 7100165283

Sold As: 500-Pack
SKU: 7100165283
MPN: 7100165283
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588823
3M ID: 80611465289
5 Digit UPC: 58882
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)5.26
Overall Length (Imperial)1.26
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Connection TypeCrimp
Connection Width (Imperial)0.375
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Metric)9.525
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial)0.54
Insulation MaterialVinyl
Terminal TypeRing
