3M Products & Supplies

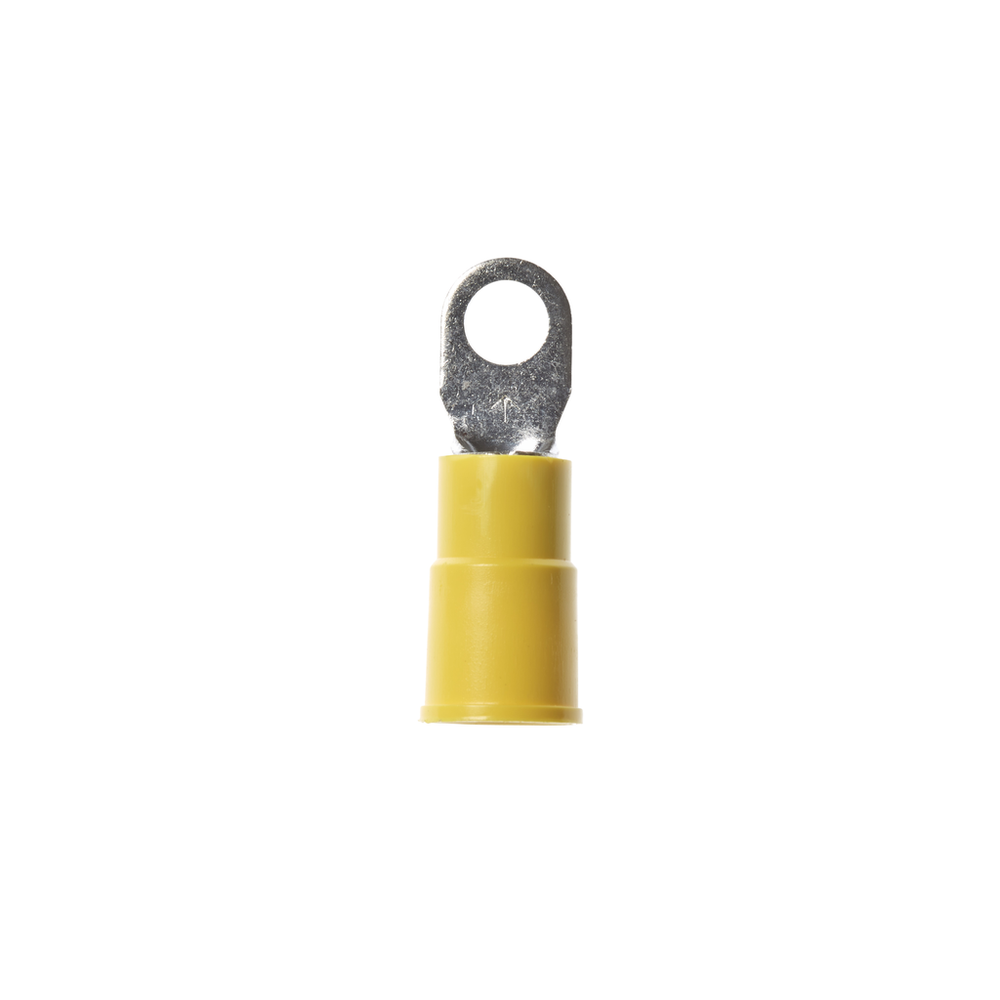

3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MVU10-8RX, standard-style ring tongue fits around the stud, 500/Case - 7010398204

Sold As: 50-Pack
SKU: 7010398204
MPN: 7010398204
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588793
3M ID: 80611465255
5 Digit UPC: 58879
$21.47 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)3.31 mm²
Connection Width (Imperial) UOMin
Maximum Conductor Size (Metric)5.26
Insulation MaterialVinyl
Connection Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.164
Connection TypeCrimp
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Overall Length (Imperial)1.03
Overall Width (Imperial)0.38
Connection Width (Metric)4.166
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
