3M Products & Supplies

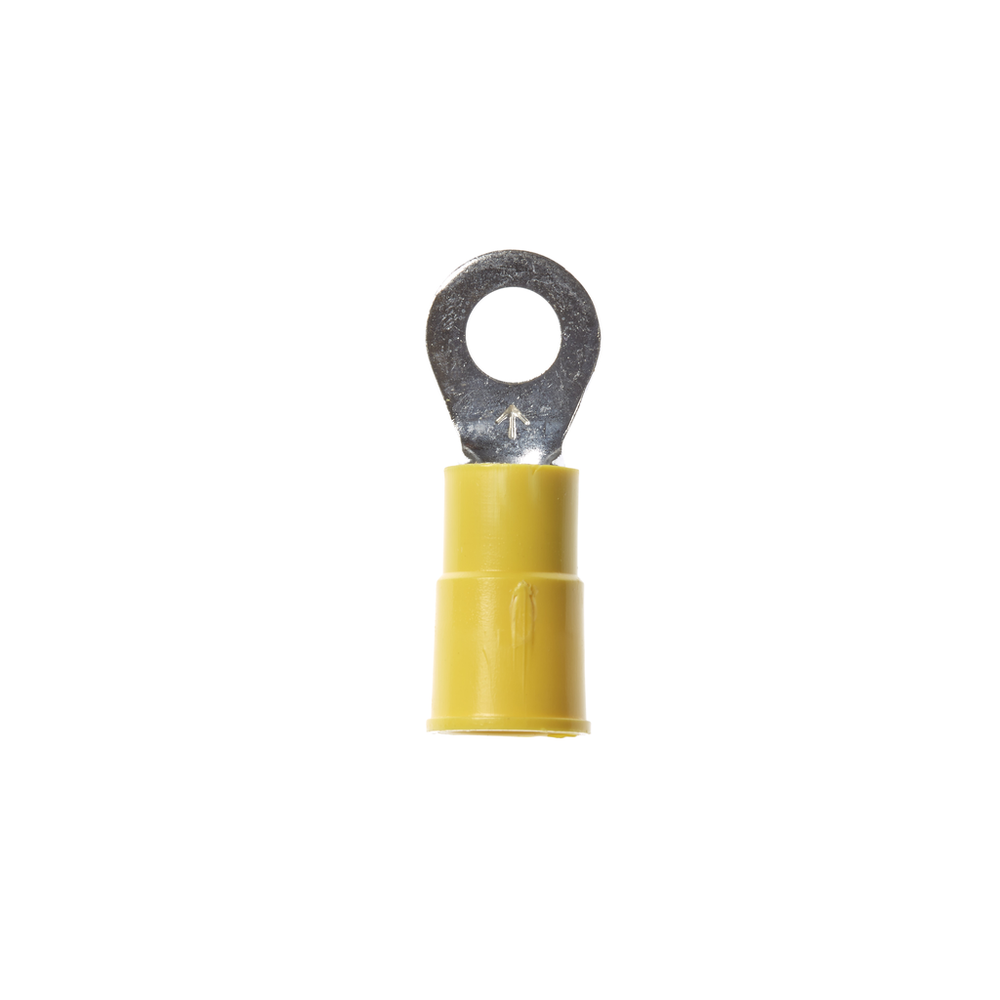

3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MVU10-10RX, standard-style ring tongue fits around the stud, 500/Case - 7010297503

Sold As: 50-Pack
SKU: 7010297503
MPN: 7010297503
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588243
3M ID: 80611464704
5 Digit UPC: 58824
$21.47 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.19
Minimum Conductor Size (Imperial)12 AWG
Connection TypeCrimp
Terminal TypeRing
Overall Length (Imperial)1.03
Overall Width (Imperial)0.38
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26
Overall Width (Metric)9.652
Maximum Conductor Size (Imperial)10 AWG
Overall Width (Imperial) UOMin
Connection Width (Metric)4.826
Connection Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric) UOMmm
Insulation MaterialVinyl
Overall Length (Imperial) UOMin
