3M Products & Supplies

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MVU18-10RX, standard-style ring tongue fits around the stud, 500/Case - 7010351289

Sold As: 100-Pack
SKU: 7010351289
MPN: 7010351289
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588533
3M ID: 80611464993
5 Digit UPC: 58853
$30.71 ($0.31 / Count)
Hurry up! Current stock:

Product Description

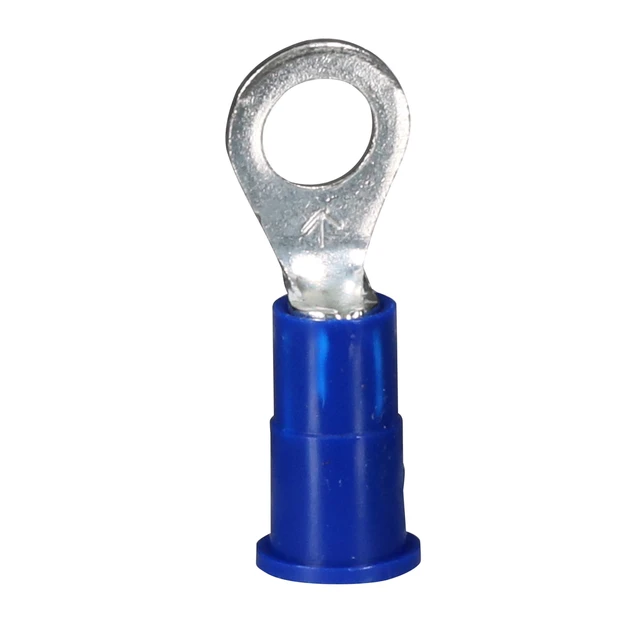

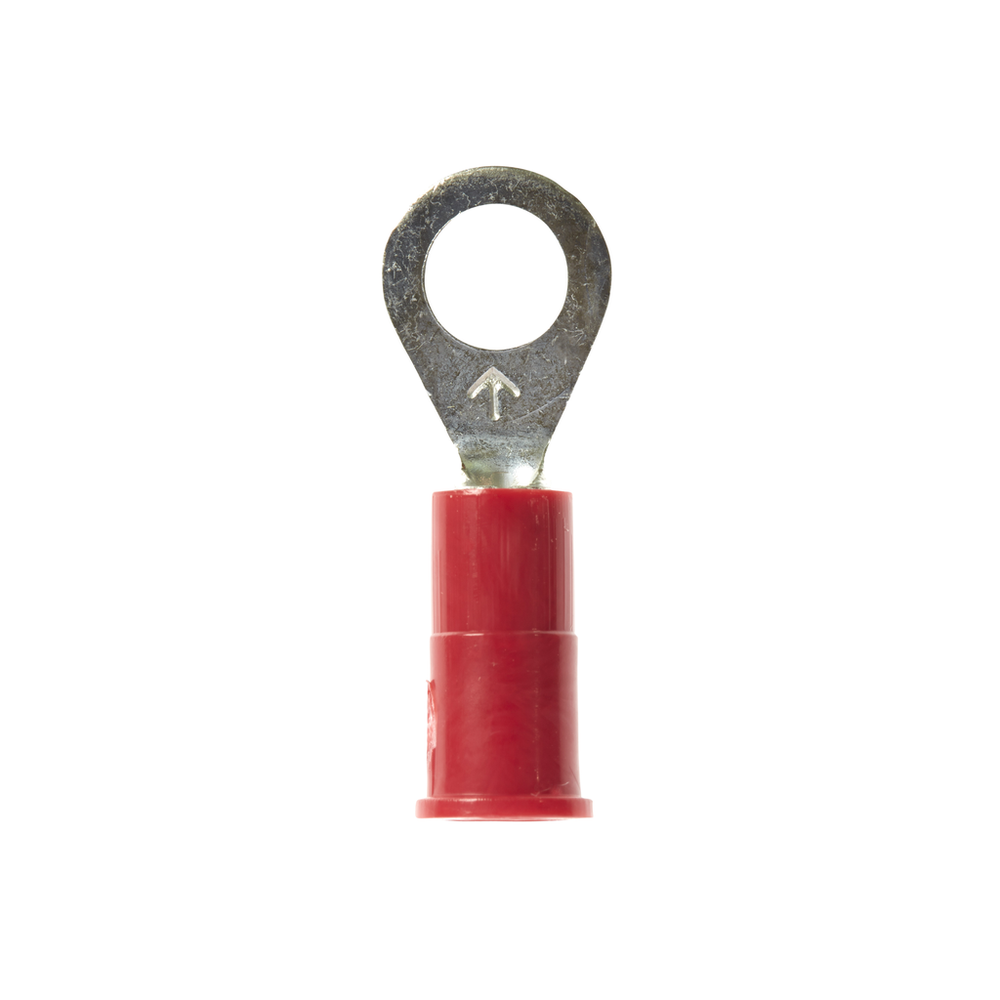

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Terminal TypeRing
Overall Width (Imperial)0.31
Maximum Operating Temperature (Celsius)105.0
Connection TypeCrimp
Connection Width (Imperial)0.19
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.9
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)0.823
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Metric)4.826
Insulation MaterialVinyl
Connection Width (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Width (Metric)7.874
