3M Products & Supplies

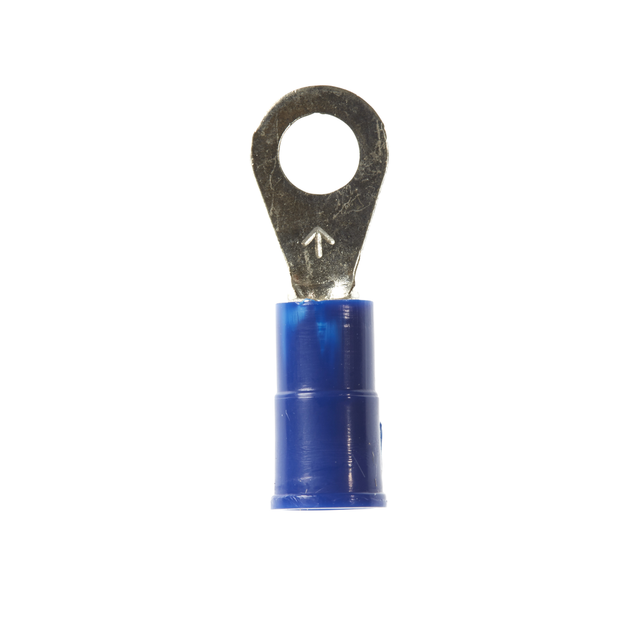

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MVU18-8R/LX, standard-style ring tongue fits around the stud, 500/Case - 7010398242

Sold As: 500-Pack
SKU: 7010398242
MPN: 7010398242
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128590406
3M ID: 80611466865
5 Digit UPC: 59040
$486.95 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.93
Maximum Operating Temperature (Celsius)105.0
Connection TypeCrimp
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.31
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)0.823
Terminal TypeRing
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Imperial)0.164
Connection Width (Metric) UOMmm
Connection Width (Metric)4.166
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
