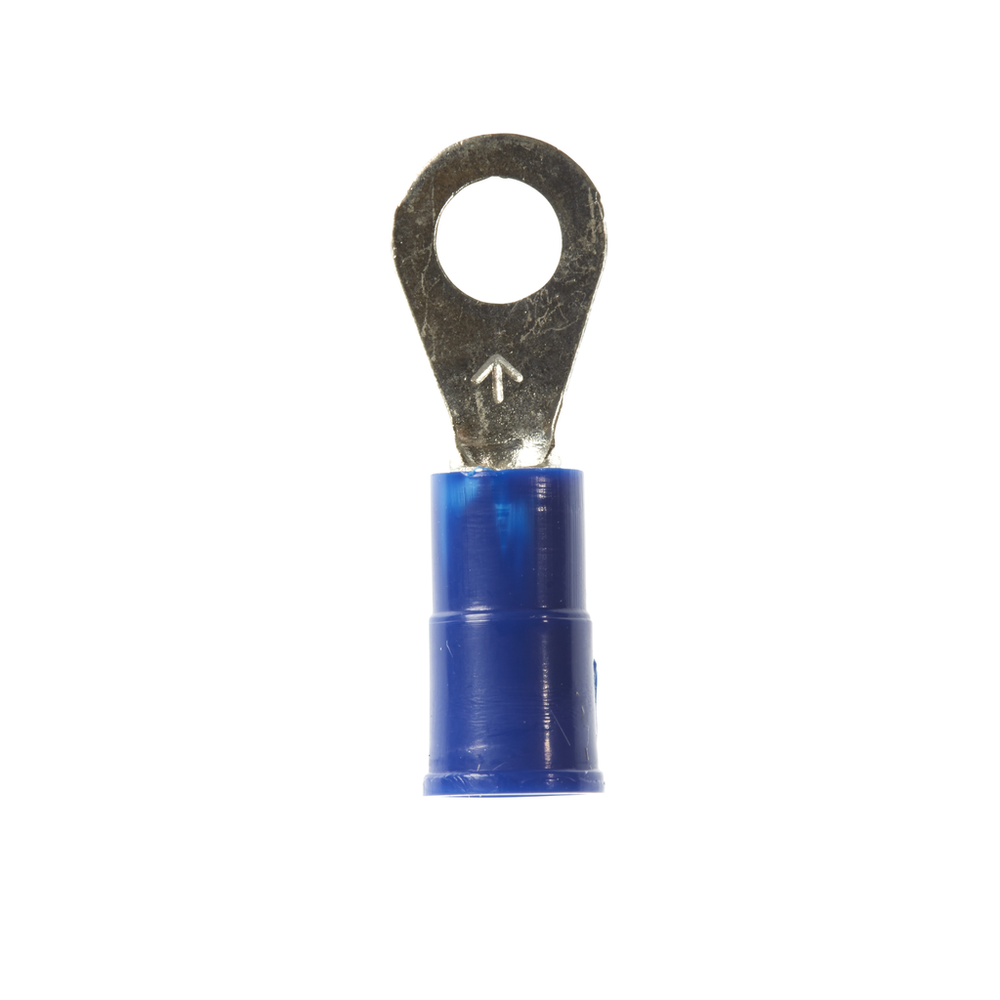

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-8R/LX, standard-style ring tongue fits around the stud, 500/Case - 7000133335

Sold As: 100-Pack
SKU: 7000133335
MPN: 7000133335
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587553
3M ID: 80611464019
5 Digit UPC: 58755
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric)7.87
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.93
Maximum Conductor Size (Metric)2.08
Product ColorBlue
Insulation MaterialVinyl
Connection Width (Metric)4.166
Barrel Length (Imperial)0.25 Inch
Overall Length (Metric) UOMmm
Ring TypeStandard
Connection Width (Imperial)0.164
Solution forWireless Network: Infrastructure Accessories
Terminal StyleStandard
Minimum Conductor Size (Metric)1.31 mm²
Barrel StyleBrazed
Overall Length (Metric)23.62
Overall Width (Imperial)0.31
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
UL File NumberE23438
