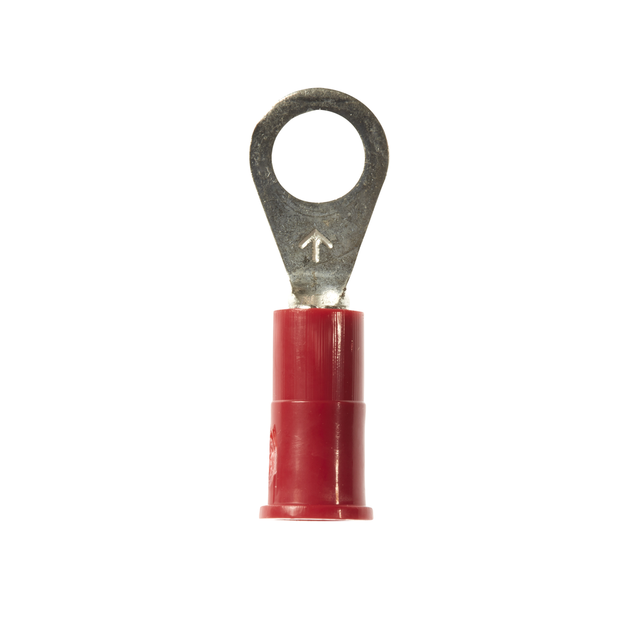

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV18-8R/LX, standard-style ring tongue fits around the stud, 500/Case - 7100008147

Sold As: 100-Pack
SKU: 7100008147
MPN: 7100008147
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128587314
3M ID: 80611458763
5 Digit UPC: 58731
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.93
Product ColorRed
Solution forWireless Network: Infrastructure Accessories
Barrel StyleBrazed
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.164
Connection Width (Metric)4.166
Overall Length (Metric) UOMmm
UL File NumberE23438
Ring TypeStandard
Overall Width (Metric) UOMmm
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Metric)7.874
Terminal TypeRing
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)0.823
Overall Length (Metric)23.622
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Terminal StyleStandard
Overall Width (Imperial)0.31
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius) UOMDegree
