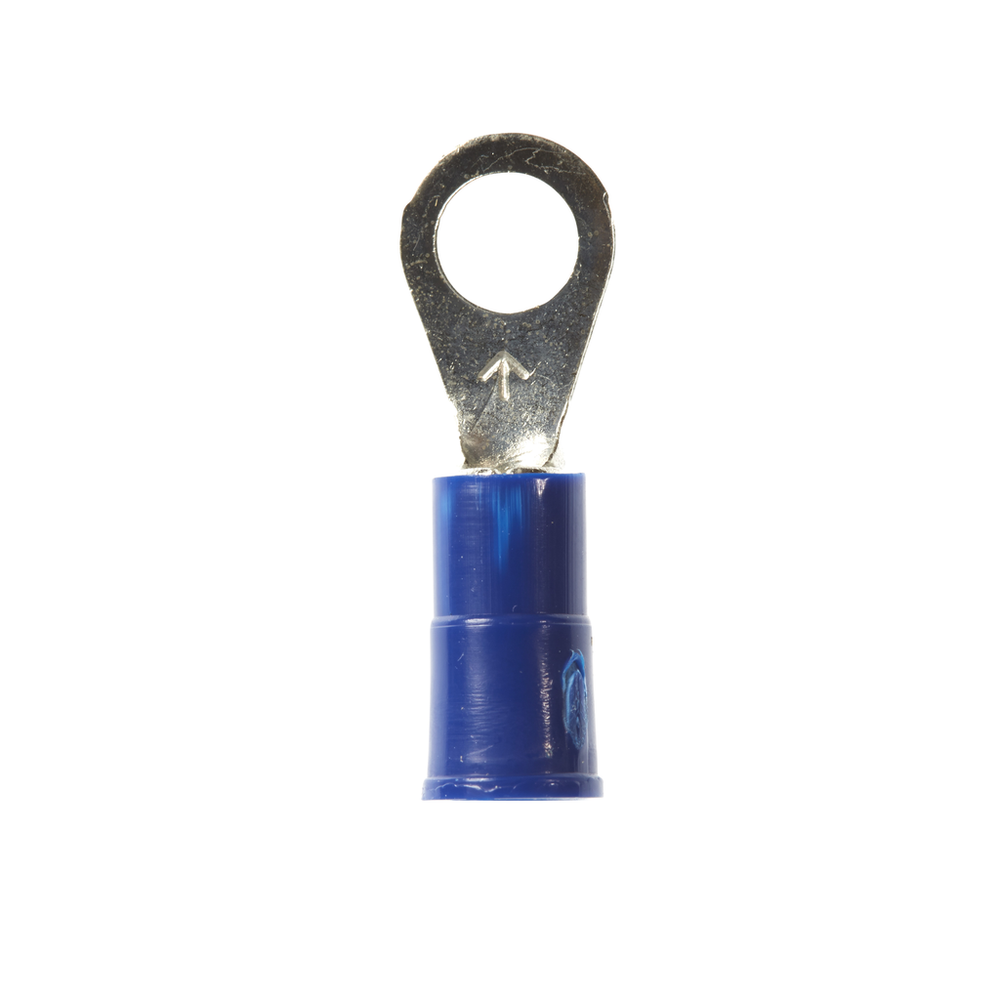

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-10R/LX, standard-style ring tongue fits around the stud, 500/Case - 7000133328

Sold As: 100-Pack
SKU: 7000133328
MPN: 7000133328
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587492
3M ID: 80611458946
5 Digit UPC: 58749
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric)23.62
Overall Length (Metric) UOMmm
Connection Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Connection Width (Imperial)0.19
Insulation MaterialVinyl
Overall Width (Metric)7.87
Maximum Conductor Size (Imperial)14 AWG
UL File NumberE23438
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial)0.93
Product ColorBlue
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleBrazed
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.31
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)4.826
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.08
Connection Width (Metric) UOMmm
Terminal StyleStandard
