3M Products & Supplies

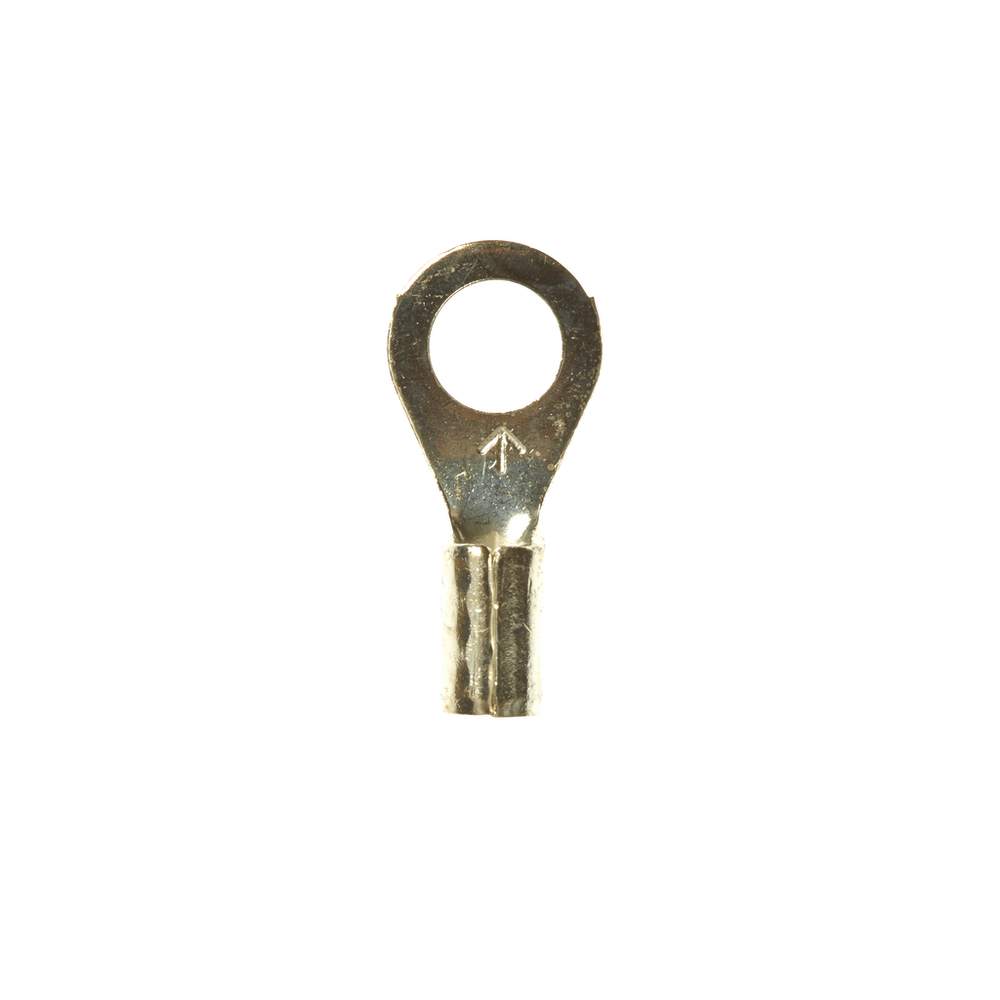

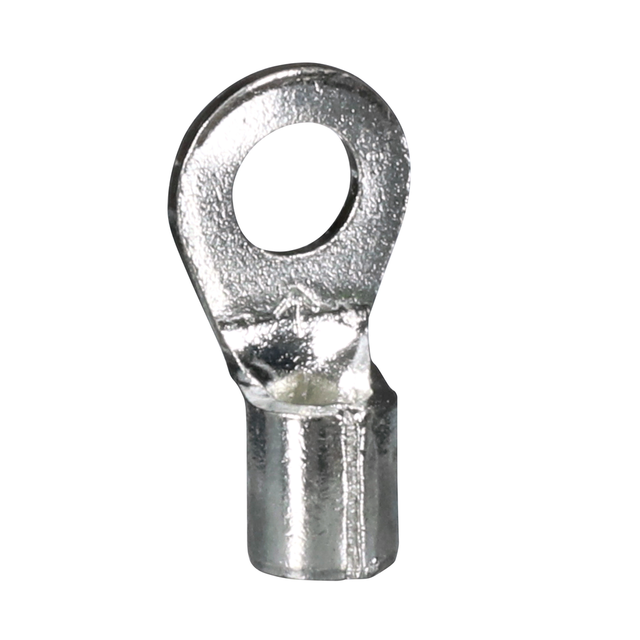

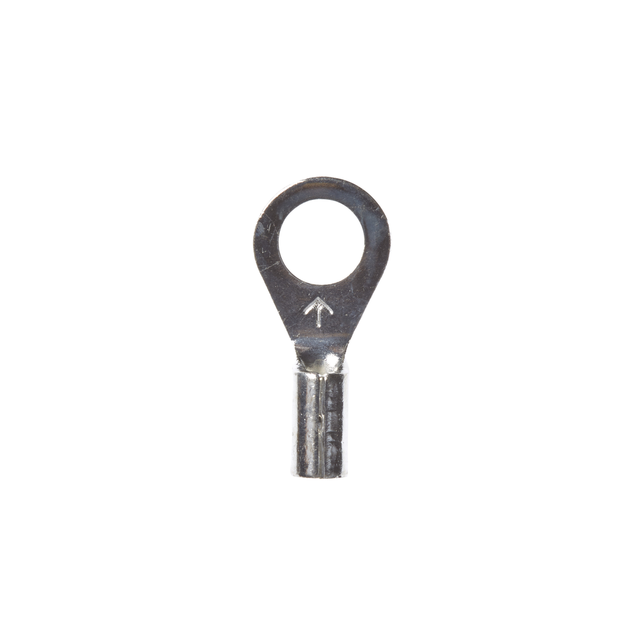

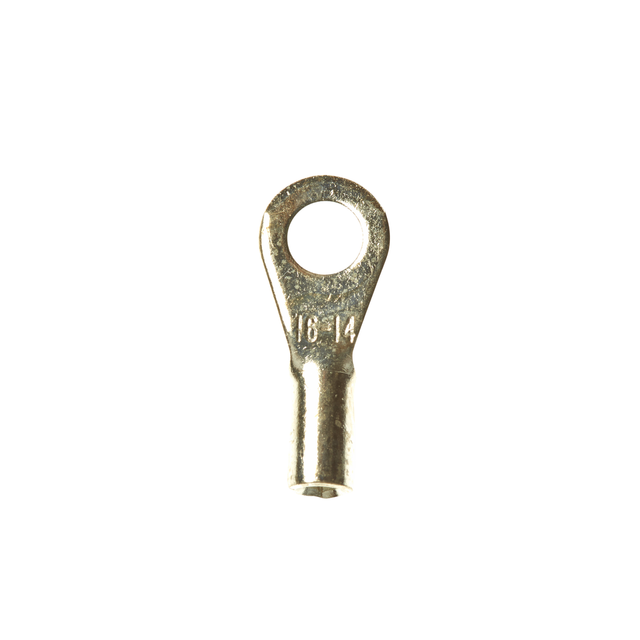

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, MU14-10RX, standard-style ring tongue fits around the stud, 500/Case - 7010398227

Sold As: 100-Pack
SKU: 7010398227
MPN: 7010398227
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128590058
3M ID: 80611466519
5 Digit UPC: 59005
$79.41 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)2.08
Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Overall Width (Imperial) UOMin
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial)0.33
Connection Width (Imperial)0.19
Overall Length (Imperial)0.7
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
Ring TypeStandard
Barrel StyleButted
Connection Width (Imperial) UOMin
Connection Width (Metric)4.826
Terminal StyleStandard
Solution forWireless Network: Infrastructure Accessories
